Uniball Kits
Couldn't load pickup availability

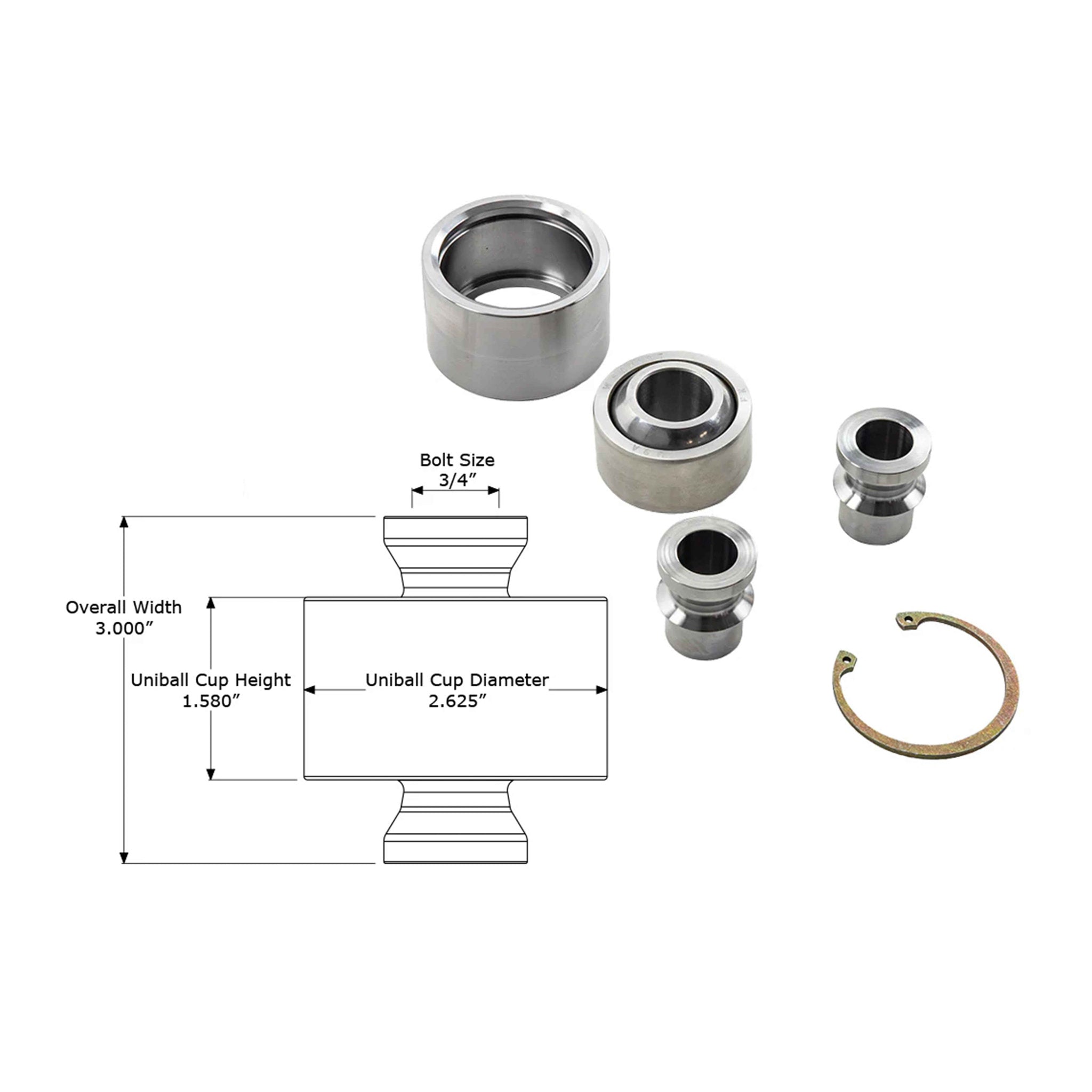

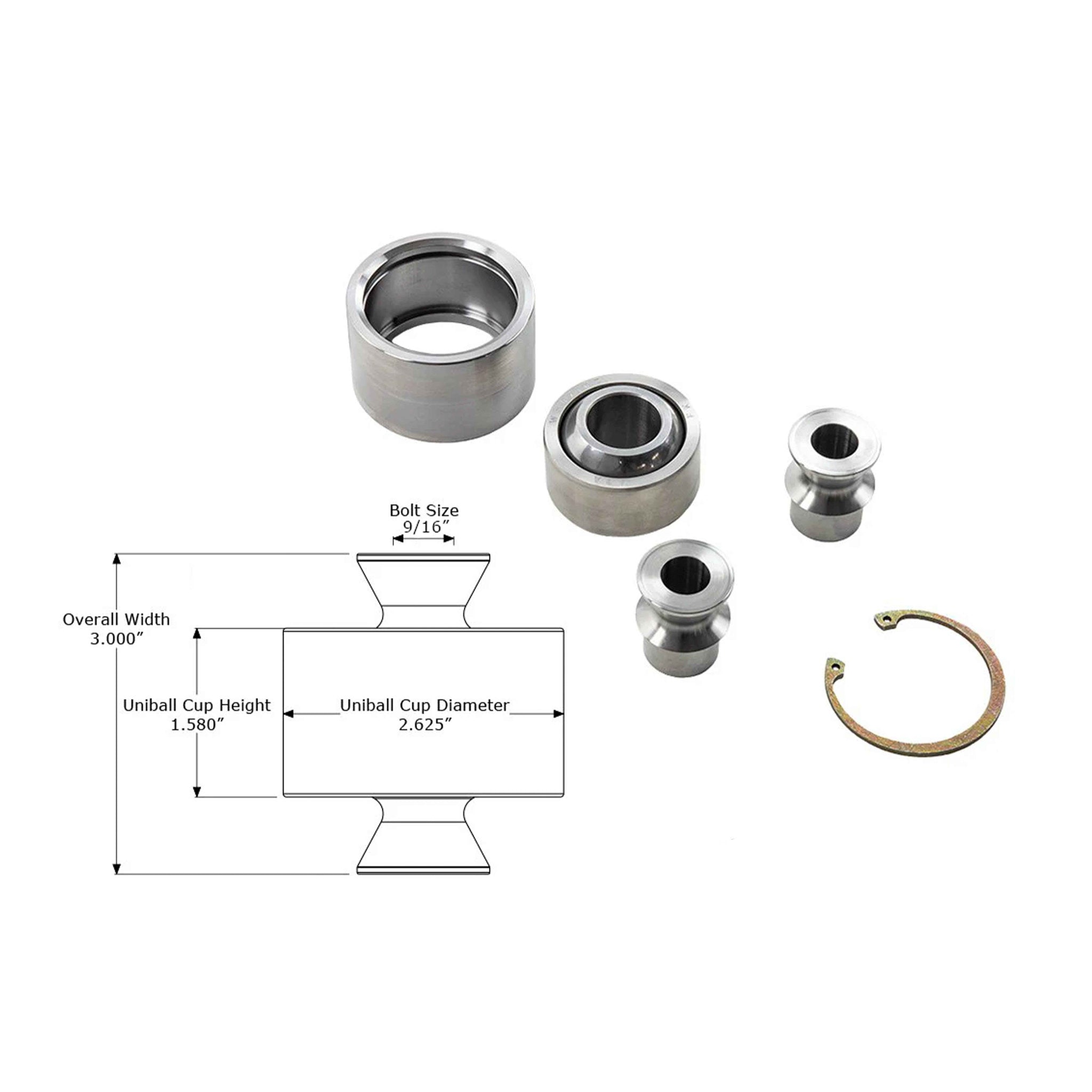

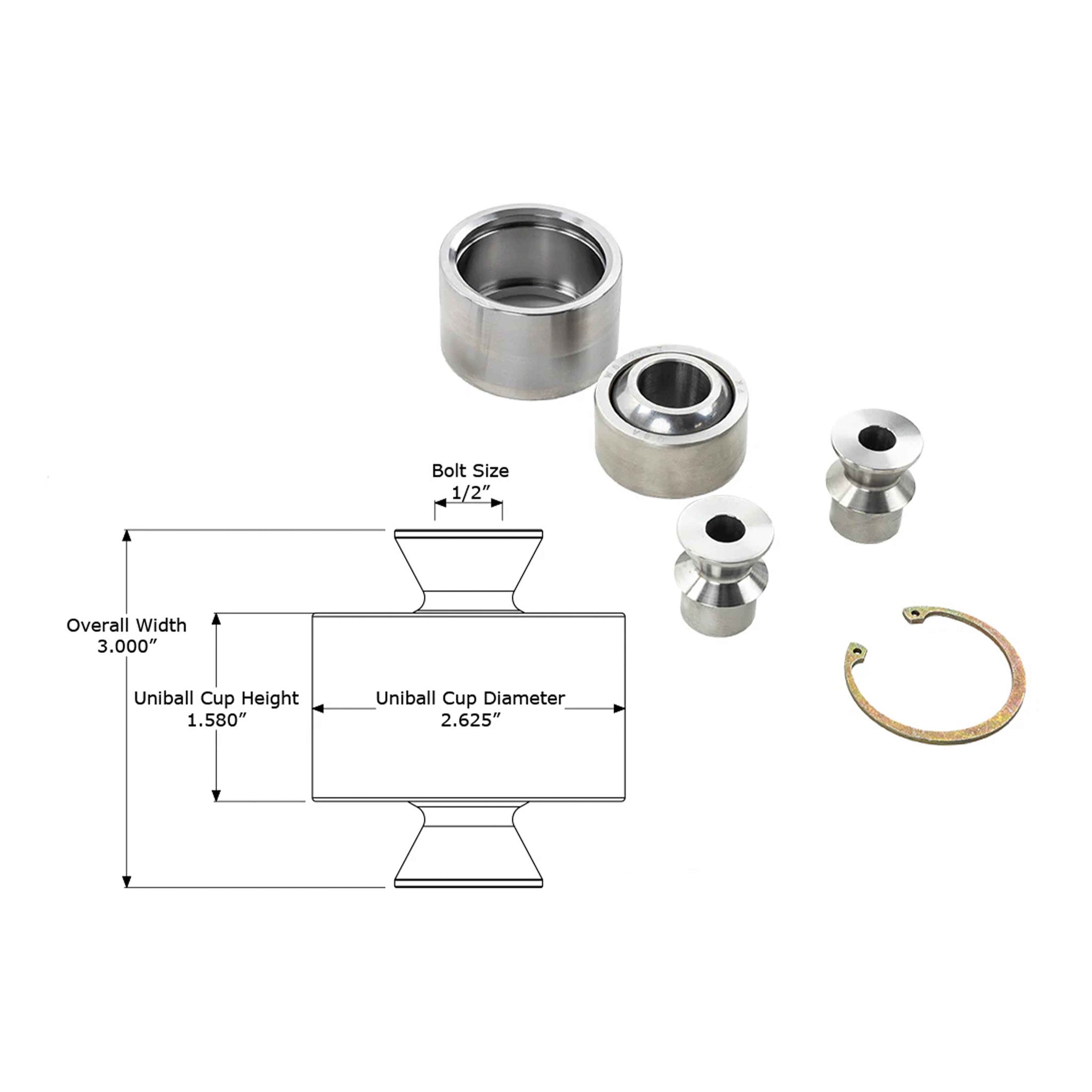

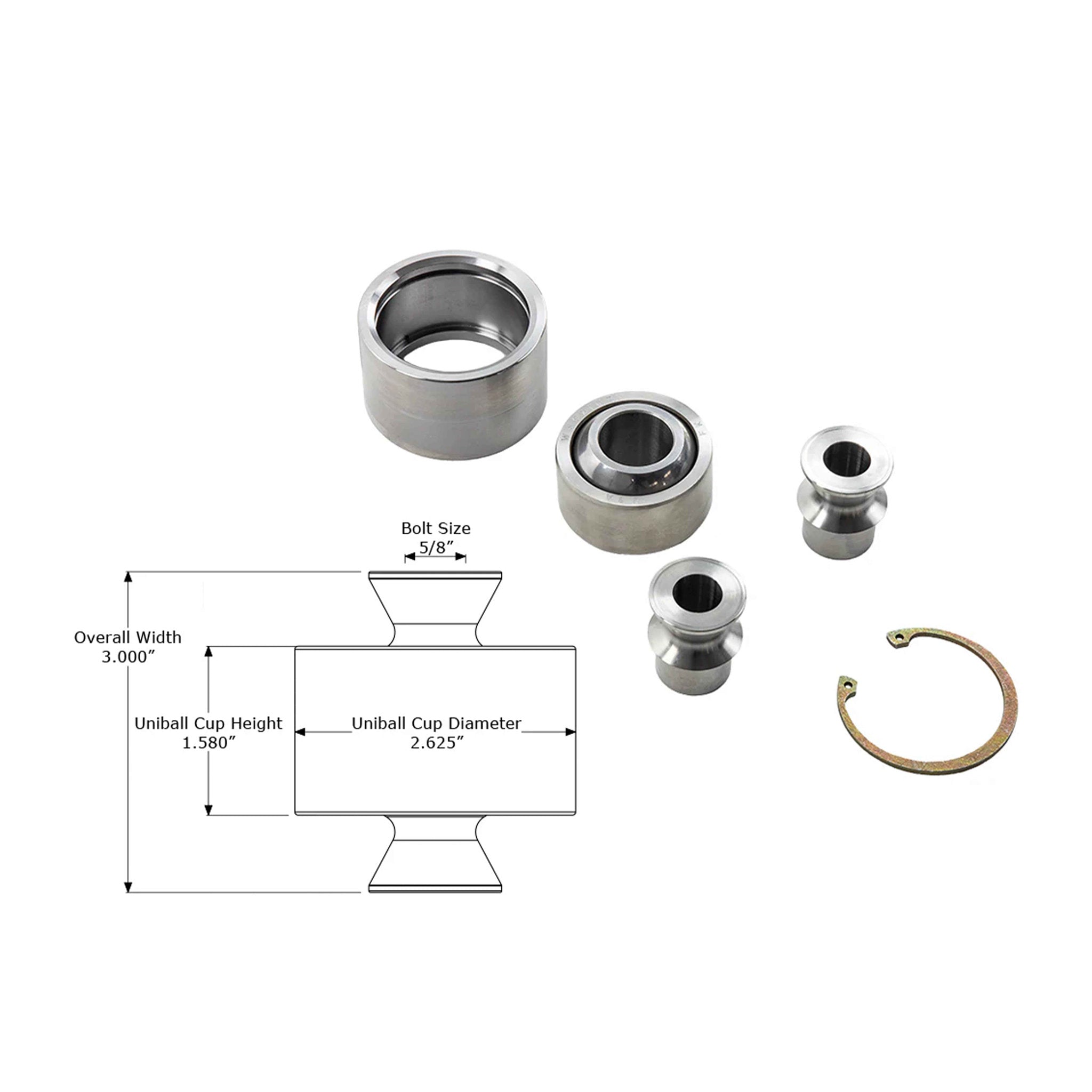

| Uniball Size | Bolt Size | Mounting Width | Misalignment |
|---|---|---|---|
| 1" P9AU16T | 1/2" | 3" | 33.4° |
| 1" P9AU16T | 9/16" | 3" | 33.4° |
| 1" P9AU16T | 5/8" | 3" | 33.4° |
| 1" P9AU16T | 3/4" | 3" | 33.4° |

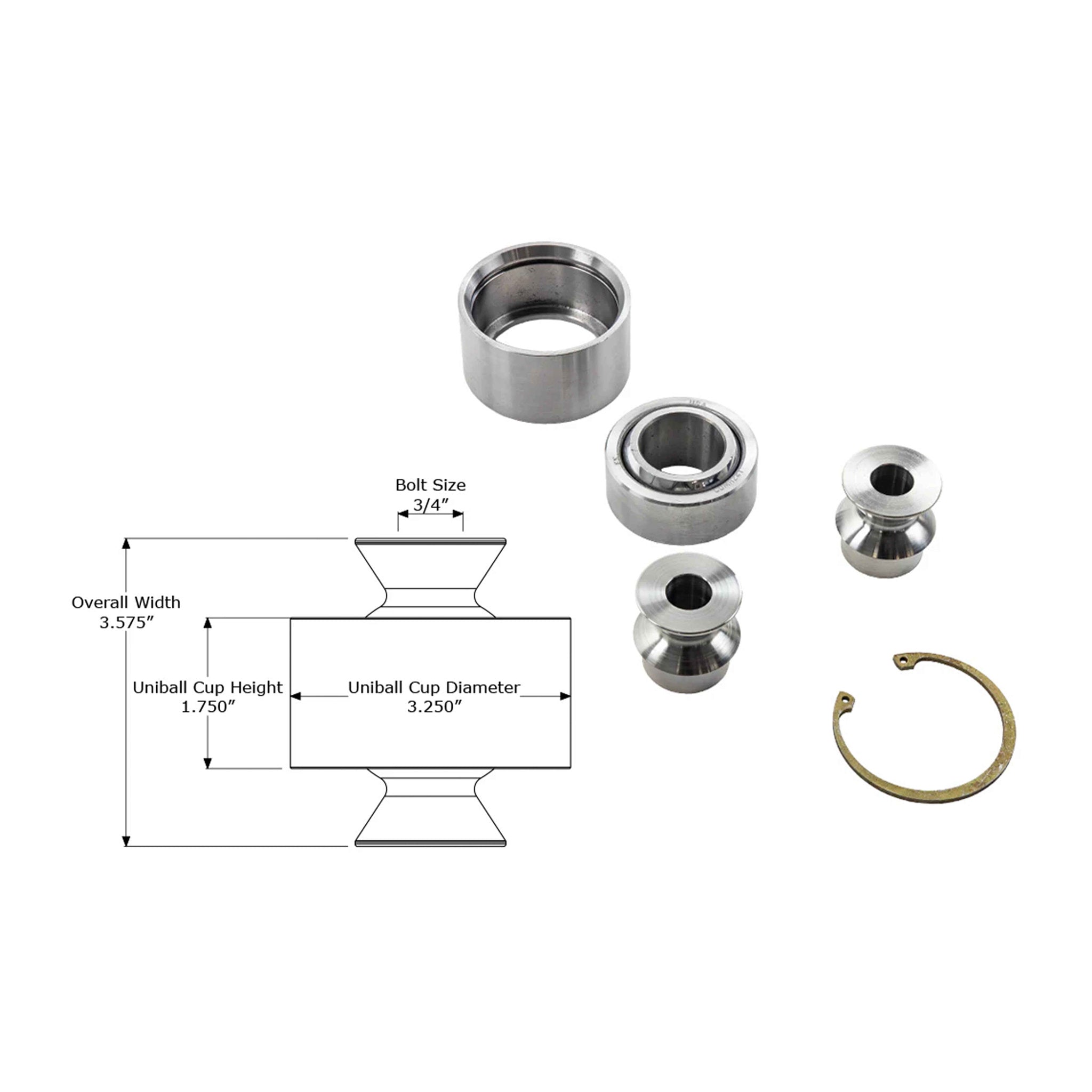

| 1-1/2" P9DU24T | 3/4" | 3.575" | 34° |
Description

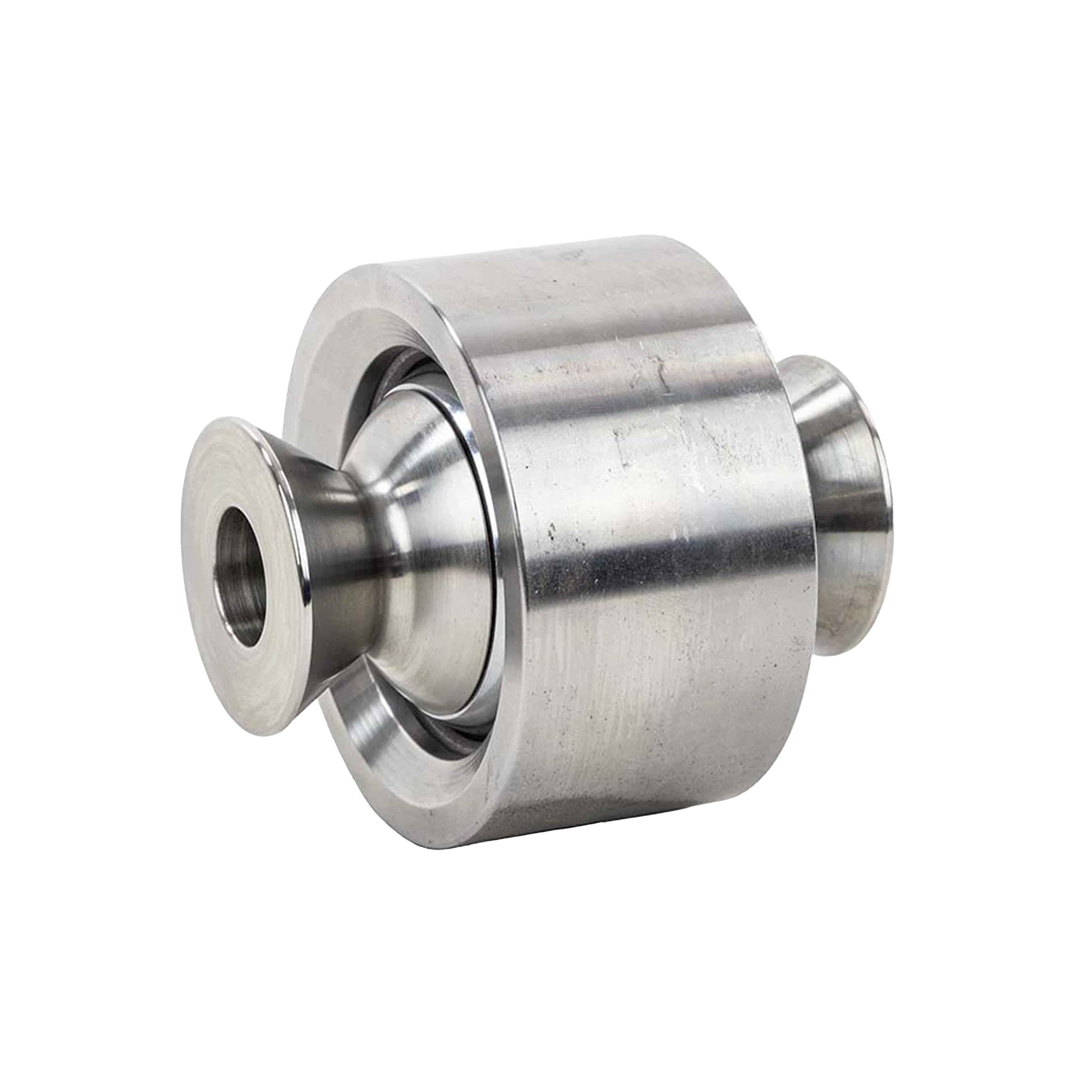

The Dirt King uniball cups are precision machined in house from 4130 chromoly steel. These cups have chamfered edges on the snap ring groove to eliminate scarring when pressing in the uniball. We hold +/- .0002 on the uniball cup bore allowing for a perfect press fit after welding when using our brass uniball slug. The slug helps absorb heat and keeps the cup from deforming throughout the welding process. The Dirt King High Misalignment Spacers are machined from heat treated 17-4 steel and designed to achieve maximum angles without sacrificing strength. This package includes (1) uniball, (1) uniball cup, (2) misalignment spacers, and (1) snap ring. The bearings are from Probearing
Includes
(1) Probearing Uniball
(2) Misalignment Spacer
(1) Uniball Cup
(1) Uniball Snap Ring
Features
Features
- Twelve built-in holes perfect for tie straps for use in sand, snow, or dirt
- Grooved bottom to slide easily though different terrain types
- Curved ends to glide easily through terrain
- Universal adapting bowl to fit most UTVs
- Ultimately, we want the product to be the strongest and most durable in conditions such as sand, dirt or snow. Therefore, we have spent a lot of time researching and developing the Safe Sled. We used HDPE plastic, which is found to be the most durable material for off-road purposes, to stand against the pressure and load.
Safe Sled to pull your UTV out of any situation
Specification
Specification
- 93.2L*38.1W*18H per unit
- 5mm wall thickness , unit weight is approximately 7.5lbs (3.5-4kg)
