Titan Swap Kit
Couldn't load pickup availability
Description
The Titan swap kit is the most affordable route to improve your vehicle’s front-end handling. This kit is developed to pair with Titan lower control arms to increase the front track width 3” per side. The kit is both 2WD and 4WD compatible along with the purchase of extended axle shafts. The upper control arms are designed with increased castor and repositioned pivot angles reducing stress on the joints. The increased castor allows for proper alignment and improved handling. We also replaced the weak factory ball joints with 1” stainless steel uniballs for maximum strength and increased articulation. To mount the arms to the spindle we include high grade 17-4 stainless steel misalignment spacers and military grade F911 hardware. All of the components on our upper control arms are rebuild-able or replaceable to make this product last a lifetime. The arms come preassembled and include detailed instructions for easy installation.
Specifications
- Wheel Travel: Additional 3” of travel compared to stock
- Amount of Lift: Allows for 0-3” of lift
- Track Width: 3” wider per side
- Maximum Tire Size: 33”
- Maximum Backspacing: 5.25”
- Minimum Rim Size: 17”
Tire Info
The upper control arms allow for 33” tires but for proper tire clearance modifications to the wheel well and bumper may need to be made.

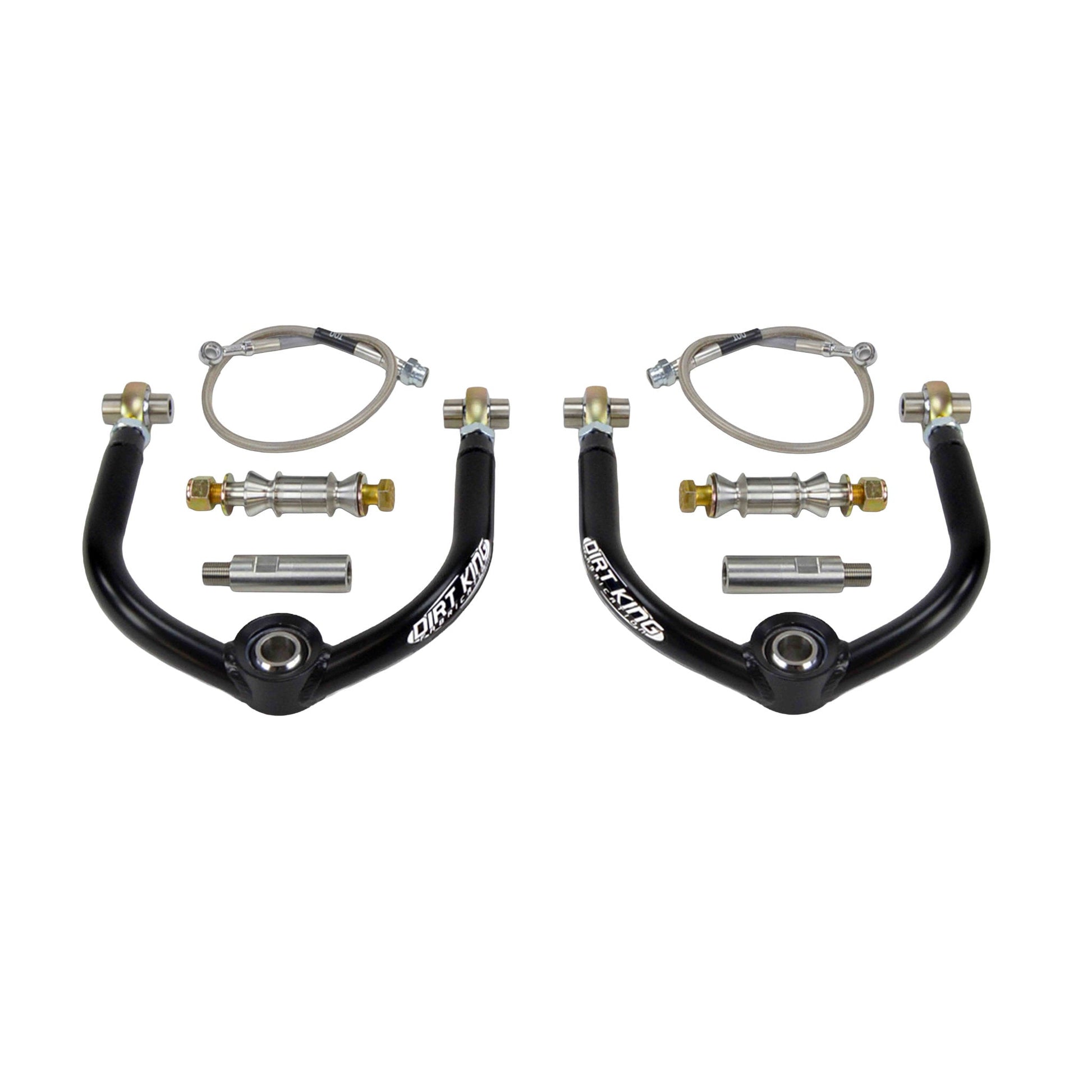

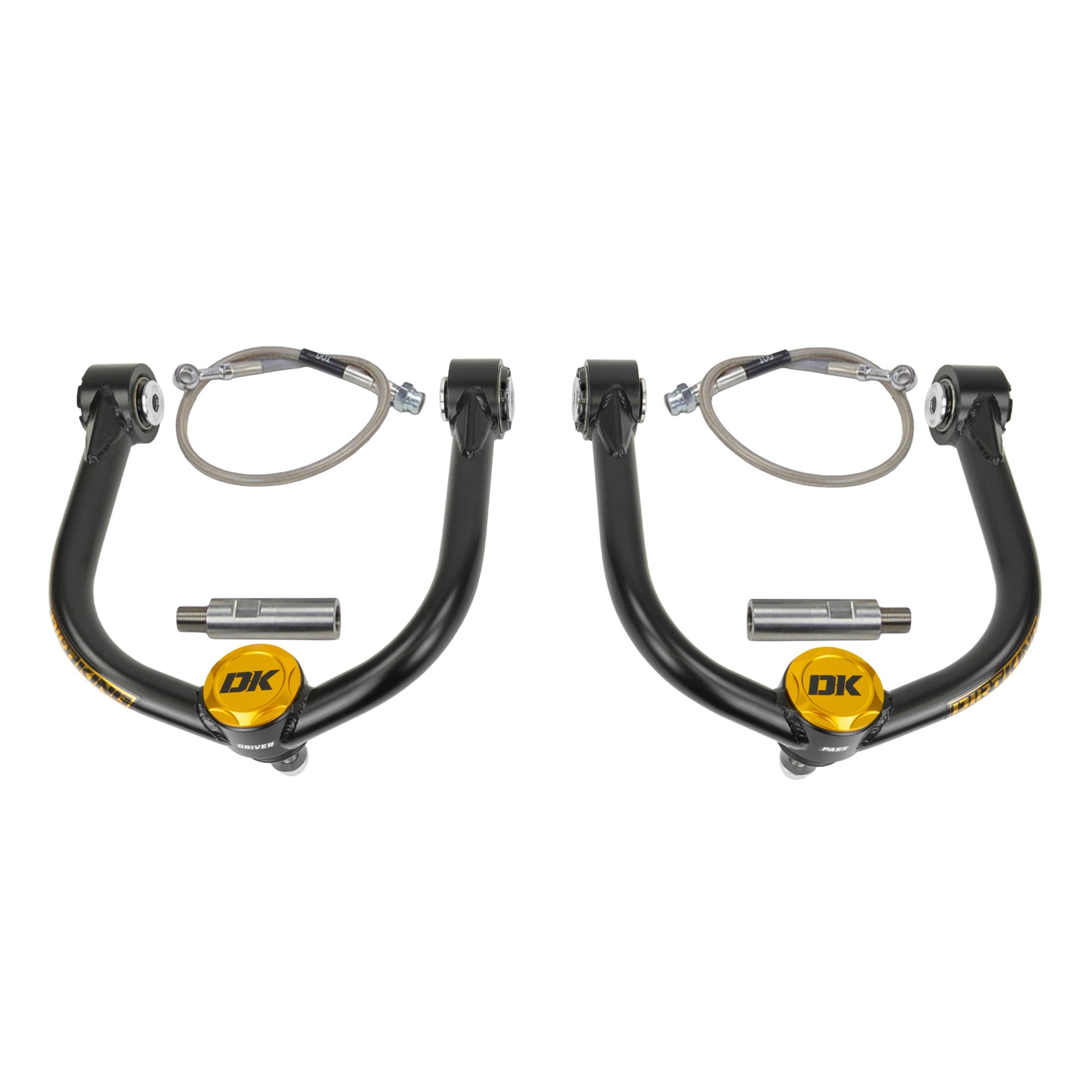

What's Included
- Chromoly upper control arms
- ¾” Probearing heims
- 1” Probearing uniballs
- 17-4 stainless steel misalignment spacers
- 17-4 stainless steel steering extensions
- Military grade F911 hardware
- Extended DOT approved brake lines
- Durable black powder coat
- Dirt King sticker pack
- Installation instructions
Features
- CAD designed
- Complete 4130 chromoly construction
- Preassembled for fast installation
- Zinc plated components for corrosion resistance
- Professionally MIG welded
- Proudly made in the USA
Compatibility
2005 - 2021 Nissan Frontier 2WD
2005 - 2015 Nissan Xterra 2WD
2005 - 2012 Nissan Navara D40 2WD
*Please contact us if you plan on installing this kit with lift spindles or a bracket lift.
