Tie Rod Extensions

$99.00 USD
$99.00 USD $99.00 USD
Sale Sold out
Shipping calculated at checkout.
Dimensions

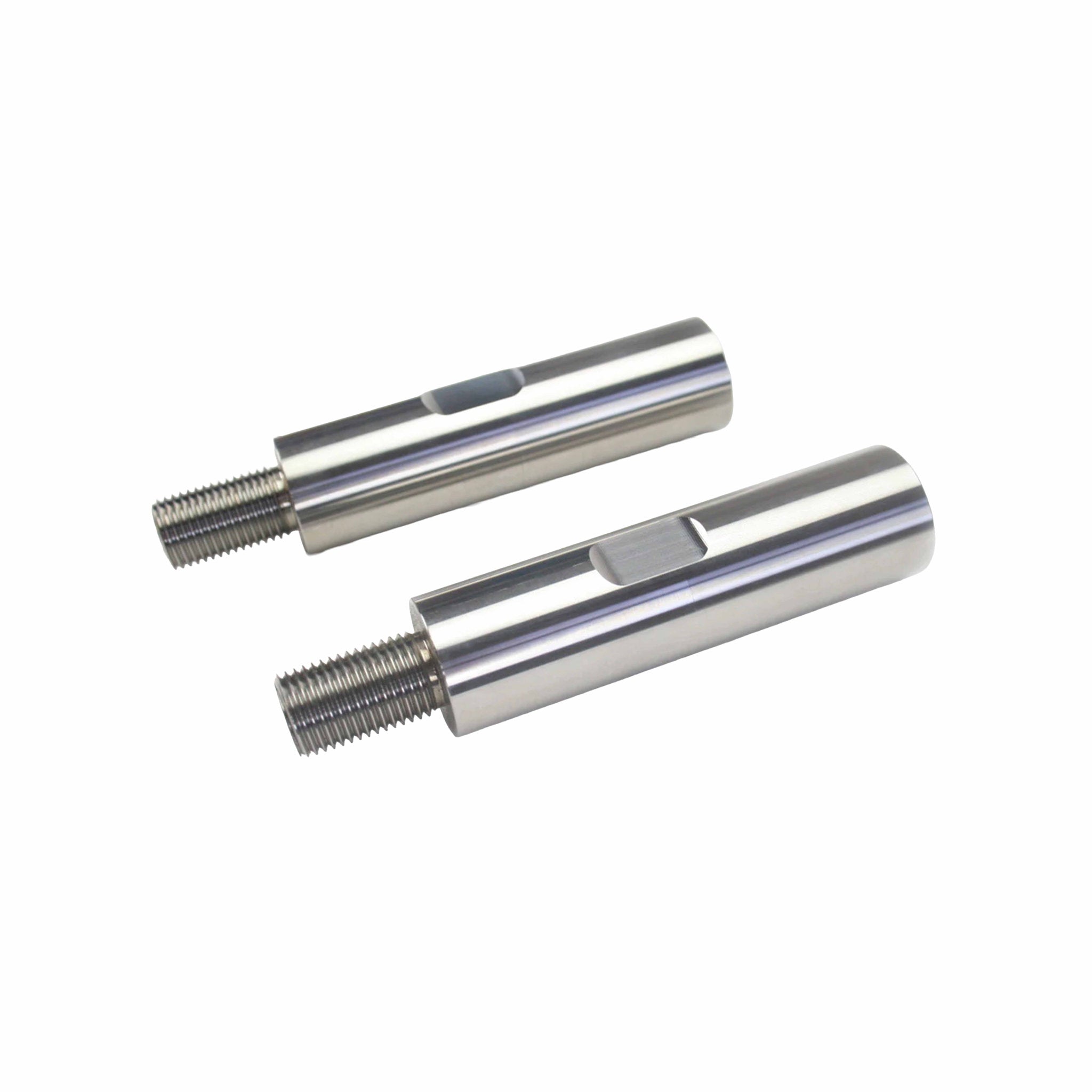

The Dirt King tie rod extensions are machined from heat treated 17-4 stainless steel. Pricing is for a pair.

Overall Threading A B C
M14-1.5 x 3.625" M14-1.5 3.625" 2.2" 1"
M15-1.5 x 3.25" M15-1.5 3.25" 2.2" 1"
M16-1.5 x 3.0" M16-1.5 3" 2.2" 1"
M16-1.5 x 3.25" M16-1.5 3.25" 2.2" 1"
M16-1.5 x 3.5" M16-1.5 3.5" 2.2" 1"
M17-1.5 x 3" M17-1.5 3" 2.2" 1"
M22-1.5 x 3.15" M22-1.5 3.15" 2" 1.25"


  Vehicle Tie Rod Reference Chart

Make Model/Year Range Threading
Chevy 07-13 Silverado/Sierra M16-1.5
Chevy 14+ Silverado/Sierra M16-1.5
Chevy 15-23 Colorado/Canyon M14-1.5
Ford 04-08 F-150 M16-1.5
Ford 09-14 F-150 M16-1.5
Nissan 04-15 Titan M16-1.5
Nissan 05-15 Frontier/Xterra M16-1.5
Ram 09-12 Ram 1500 M17-1.5
Ram 13-18 Ram 1500 M16-1.5
Toyota 07-21 Tundra M22-1.5
Toyota 05-23 Tacoma M16-1.5
Toyota 03-09 4Runner M15-1.5
Toyota 10-23 4Runner M16-1.5
Toyota 07-09 FJ Cruiser M15-1.5

Features

  • Twelve built-in holes perfect for tie straps for use in sand, snow, or dirt
  • Grooved bottom to slide easily though different terrain types
  • Curved ends to glide easily through terrain
  • Universal adapting bowl to fit most UTVs
  • Ultimately, we want the product to be the strongest and most durable in conditions such as sand, dirt or snow. Therefore, we have spent a lot of time researching and developing the Safe Sled. We used HDPE plastic, which is found to be the most durable material for off-road purposes, to stand against the pressure and load.

Safe Sled to pull your UTV out of any situation

Specification

  • 93.2L*38.1W*18H per unit
  • 5mm wall thickness , unit weight is approximately 7.5lbs (3.5-4kg)
