Race Kit Spec Fox Coilovers
Regular price
$1,999.00 USD
Regular price
Sale price
$1,999.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description

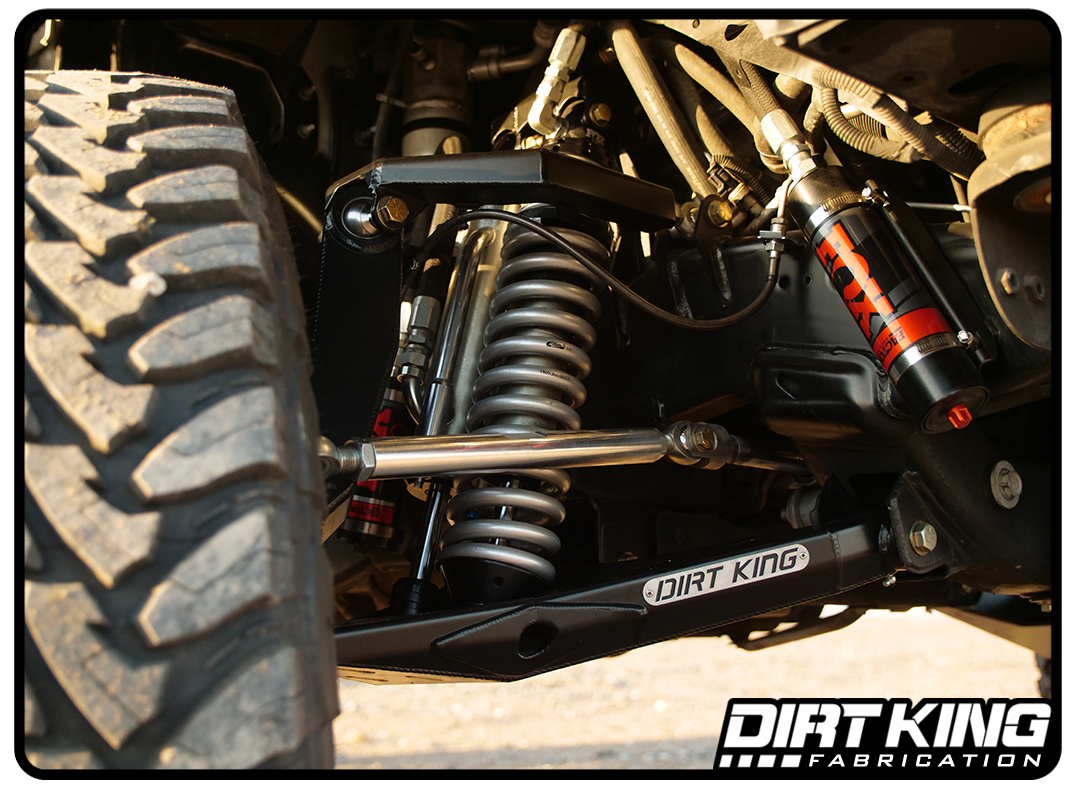

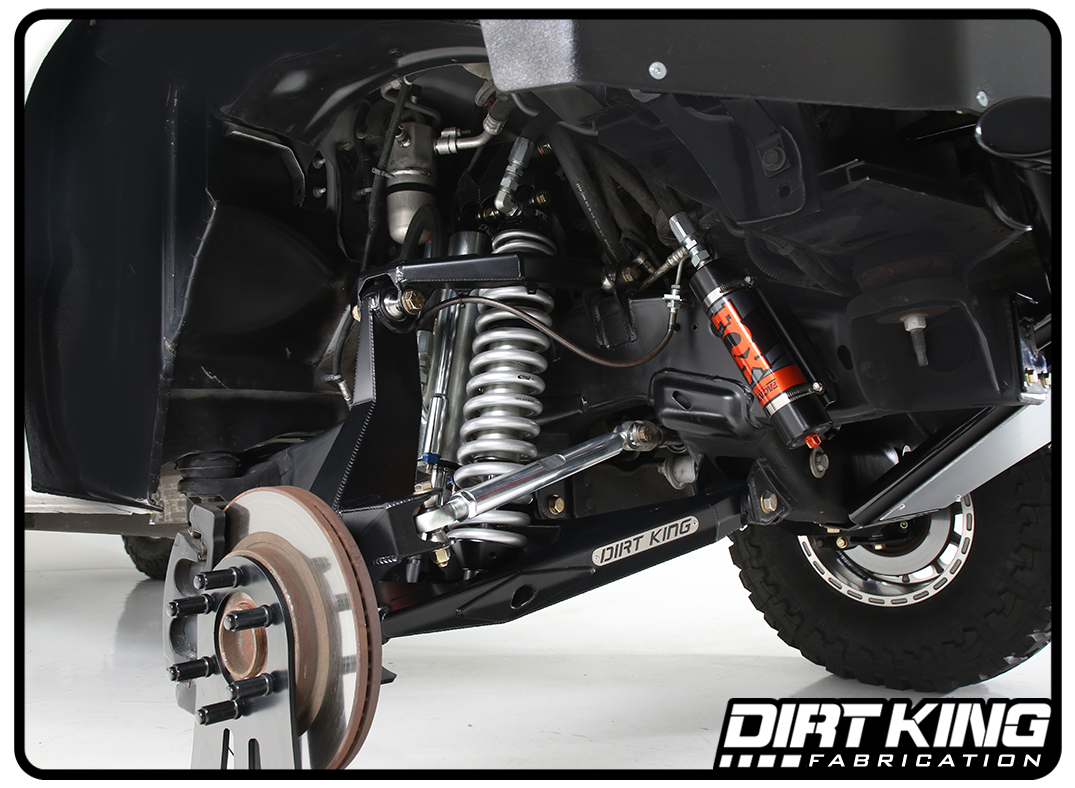

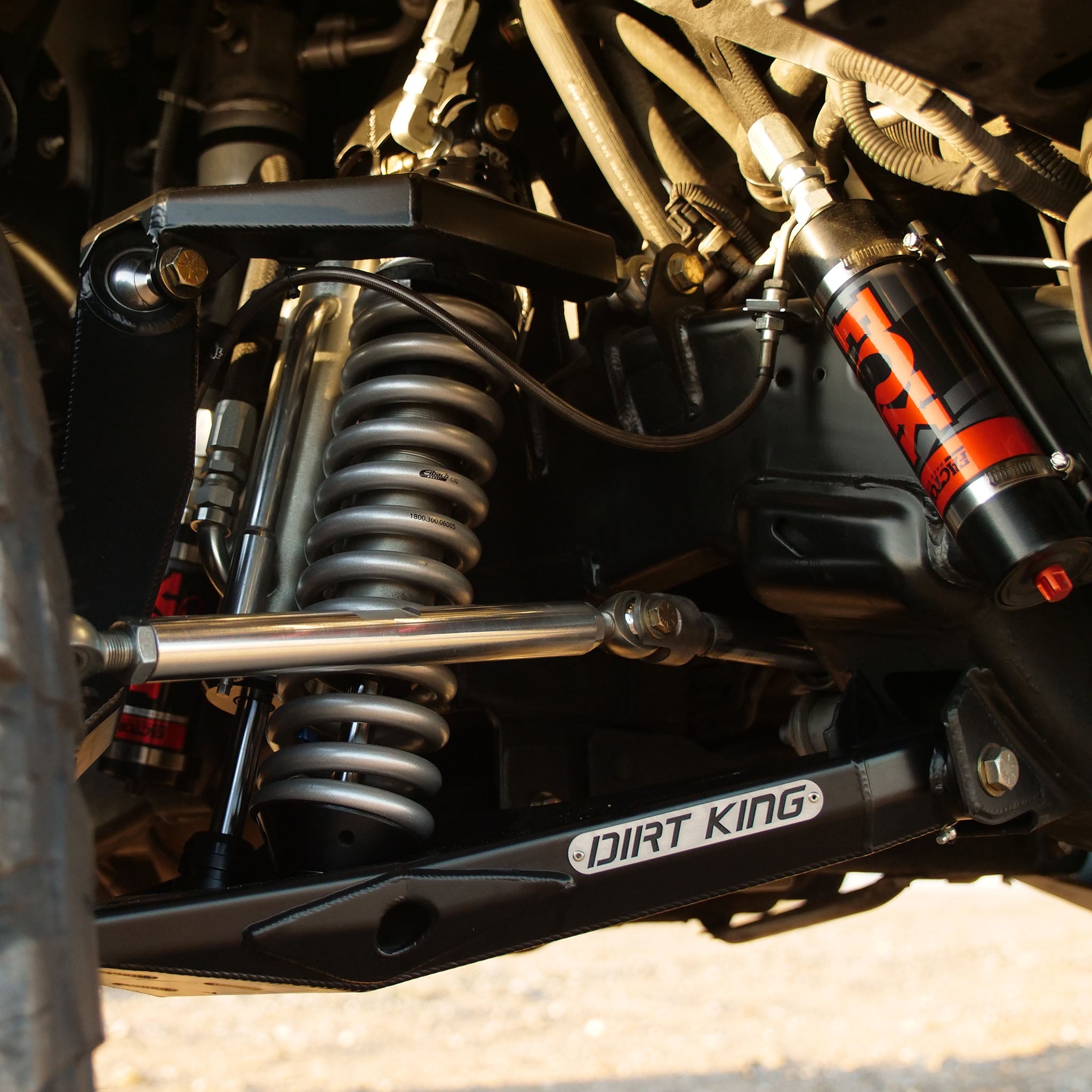

The Dirt King spec coilover shocks were developed specifically for our long travel race kits with a custom hose layout, custom valving, and proper spring rates. They are ready to be installed right out of the box. For the best off road performance we recommend pairing these spec coilover shocks with our spec bypass shocks.
Specifications
- Shock Manufacture: Fox
- Spring Manufacture: Eibach
What's Included

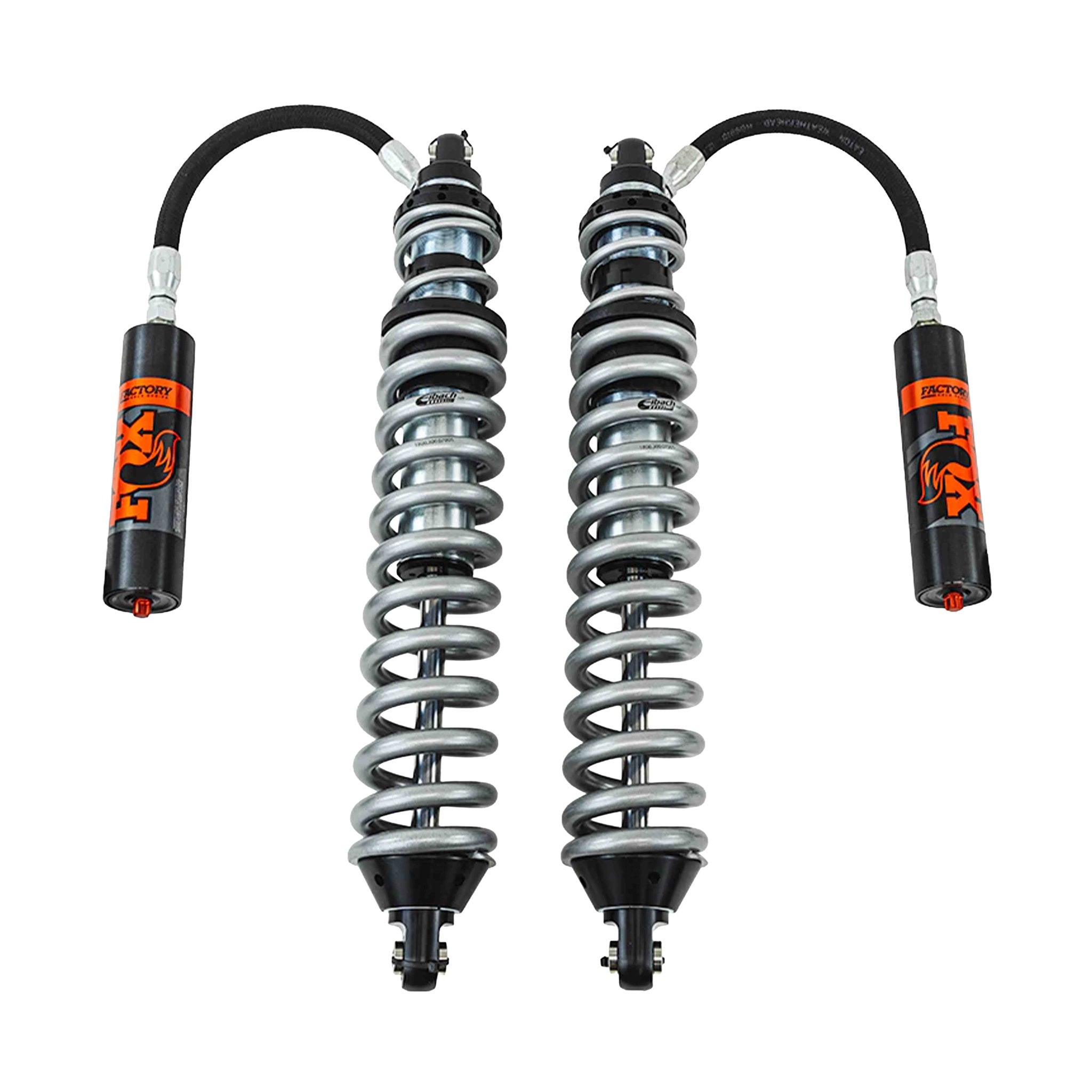

- Fox spec built shocks with remote reservoirs
Features
| Body | 2.5" Smooth bore and honed seamless alloy body |
|---|---|
| Body Plating | Zinc-plated and double-clear coated for long lasting finish |
| External Reservoir | 2.5" Smooth bore and honed seamless alloy reservoir |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Spring | Application specific, adjustable 3.0 Eibach® racing springs |
| Shaft | 7/8" hard chrome plated steel shafts |
| Piston | 6061-T6 hard-anodized, high flow aluminum piston |
| Valving | Application specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Oil | JM92 Advanced Suspension Fluid for improved performance at variable temperatures |
| Bearing | PTFE-lined, heat-treated, alloy steel spherical |
| Mounting | For Dirt King long travel race kits only |
| Adjustments | Ride height preload ring |
Compatibility
Works with the following suspension systems: DK-632909, DK-631909, DK-635909, DK-542909, DK-541909.
Features
Features
- Twelve built-in holes perfect for tie straps for use in sand, snow, or dirt
- Grooved bottom to slide easily though different terrain types
- Curved ends to glide easily through terrain
- Universal adapting bowl to fit most UTVs
- Ultimately, we want the product to be the strongest and most durable in conditions such as sand, dirt or snow. Therefore, we have spent a lot of time researching and developing the Safe Sled. We used HDPE plastic, which is found to be the most durable material for off-road purposes, to stand against the pressure and load.
Safe Sled to pull your UTV out of any situation
Specification
Specification
- 93.2L*38.1W*18H per unit
- 5mm wall thickness , unit weight is approximately 7.5lbs (3.5-4kg)
