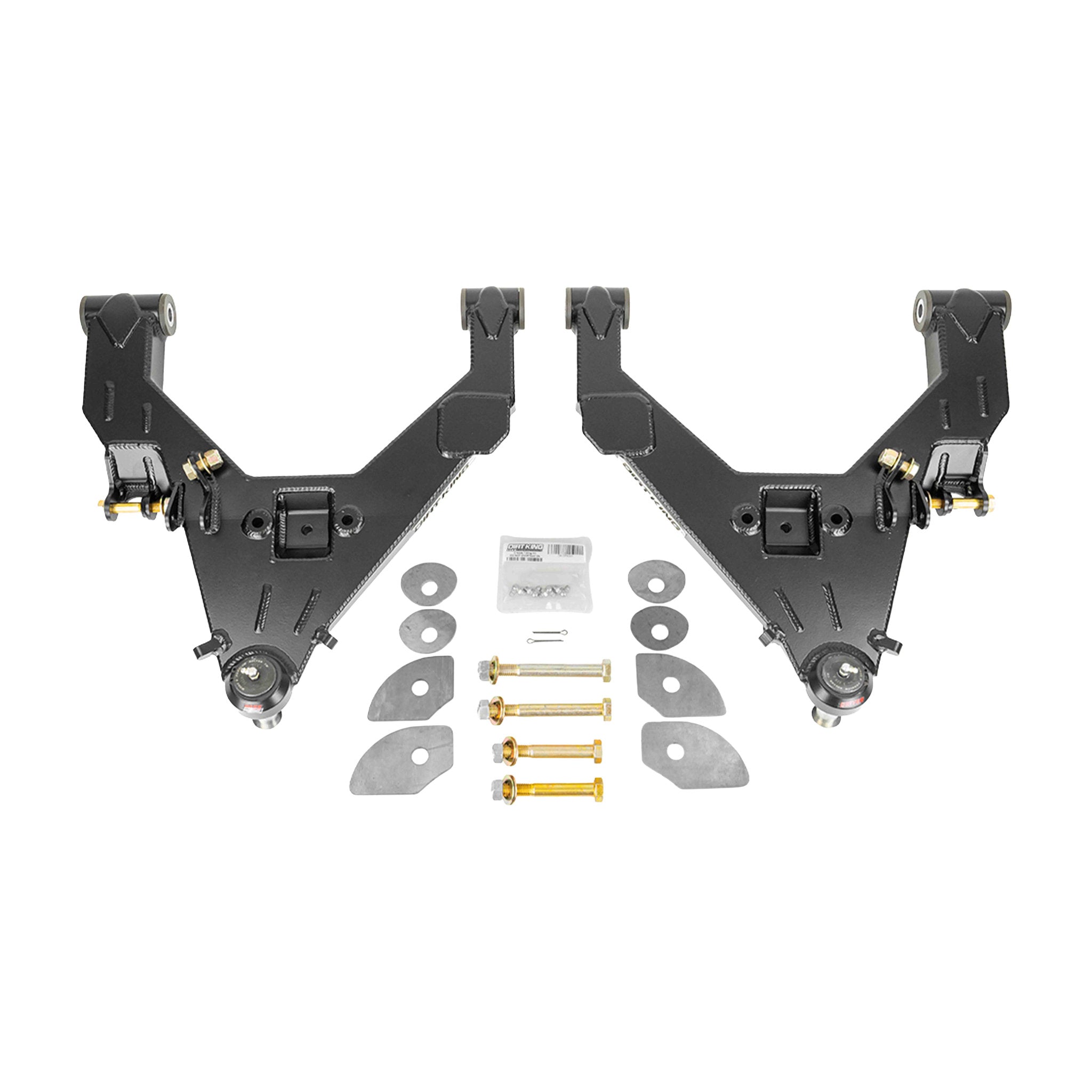

Performance Lower Control Arms
Couldn't load pickup availability
Description

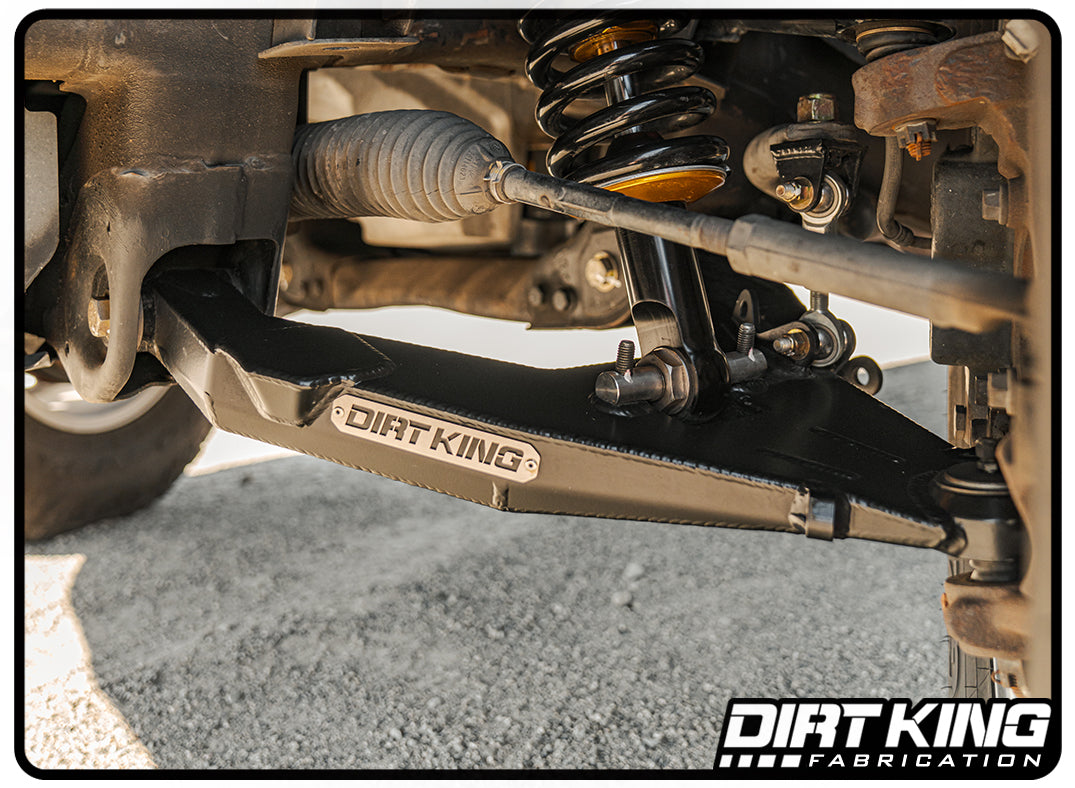

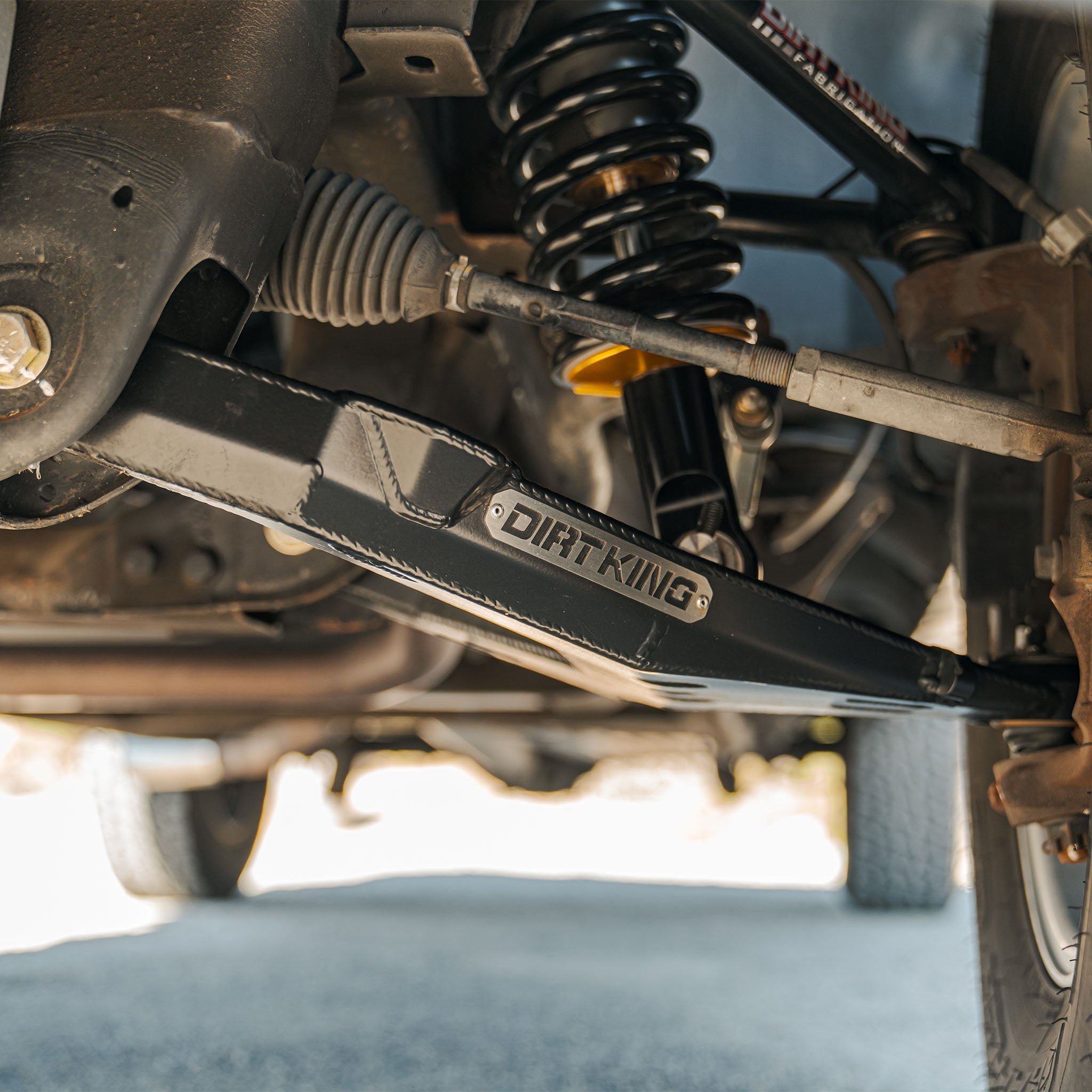

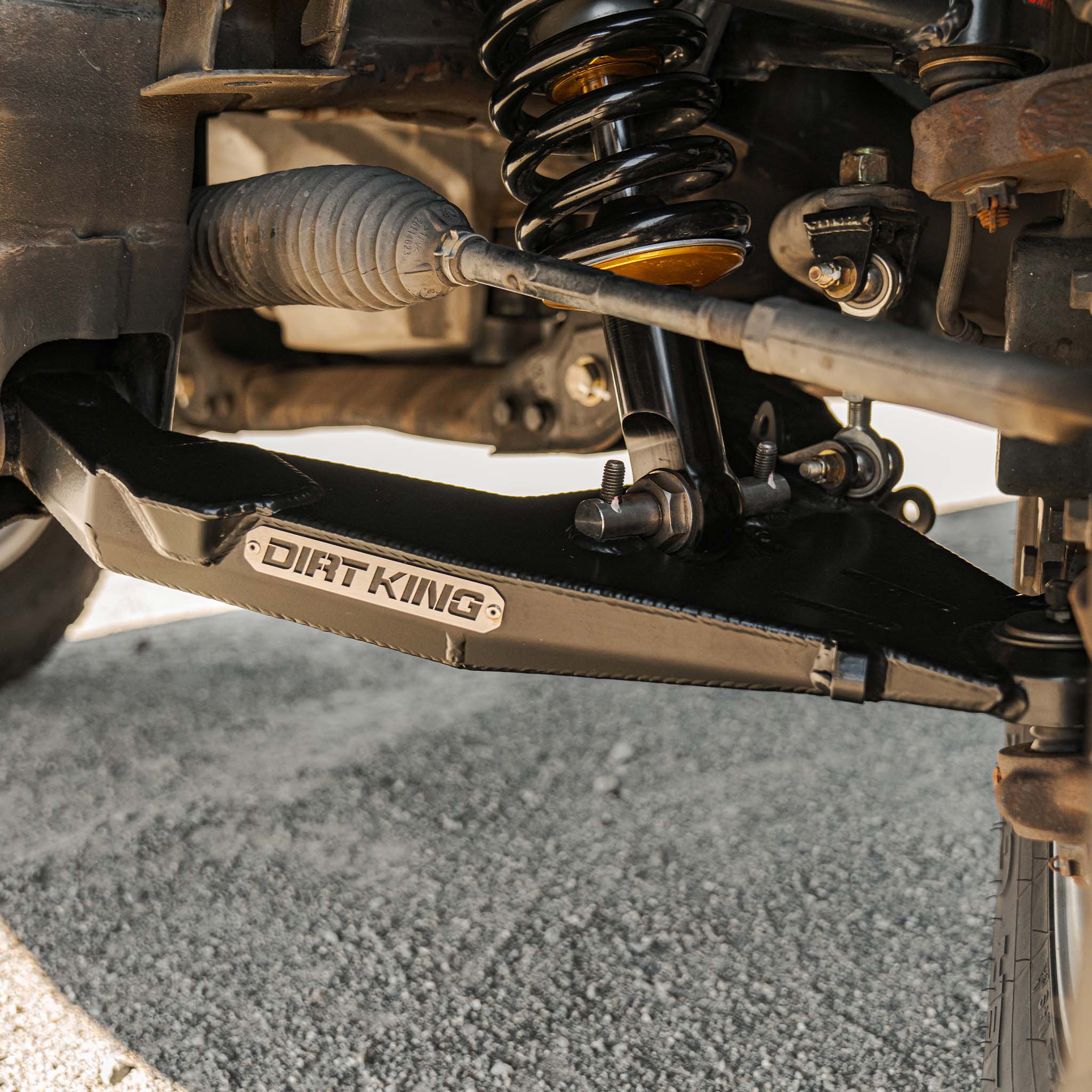

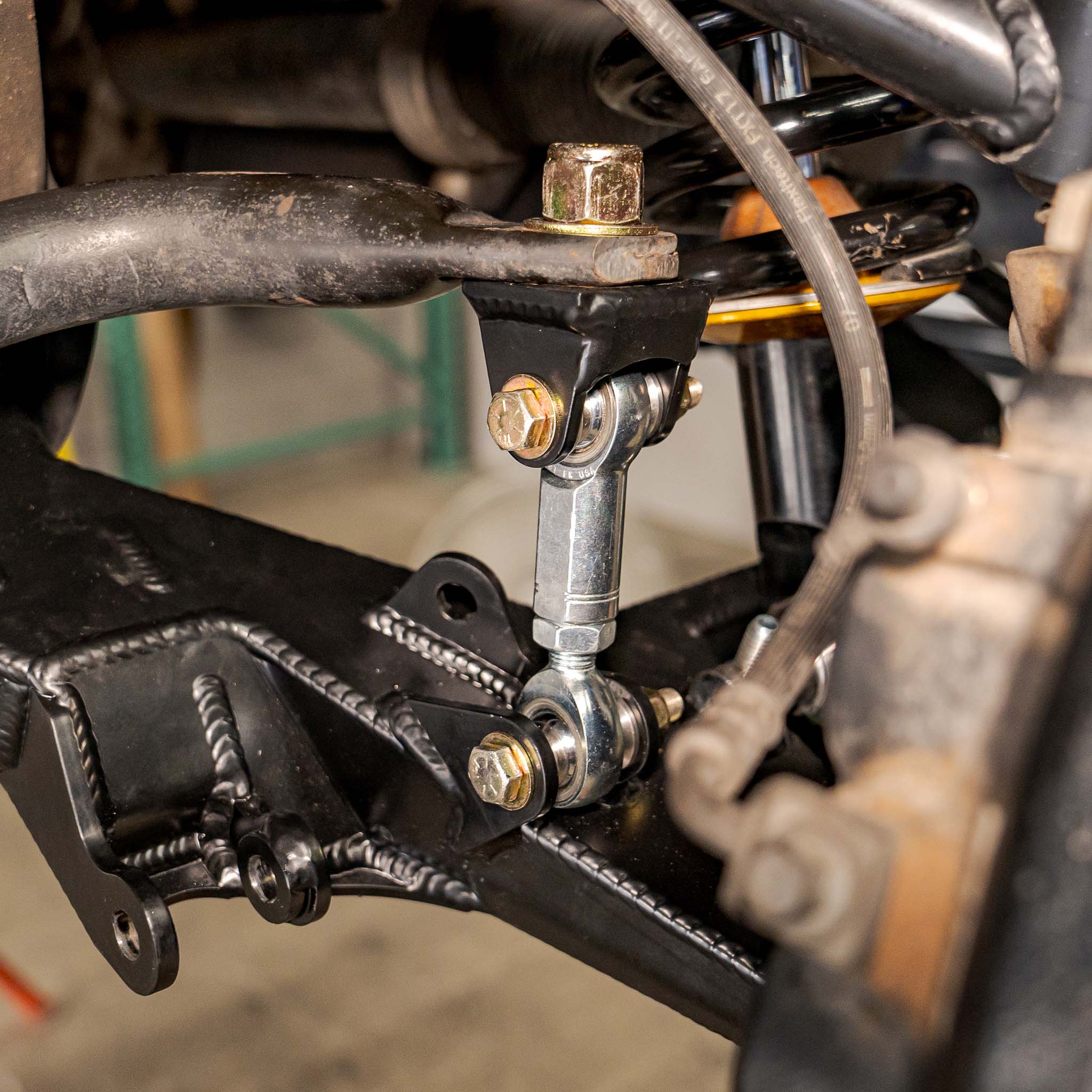

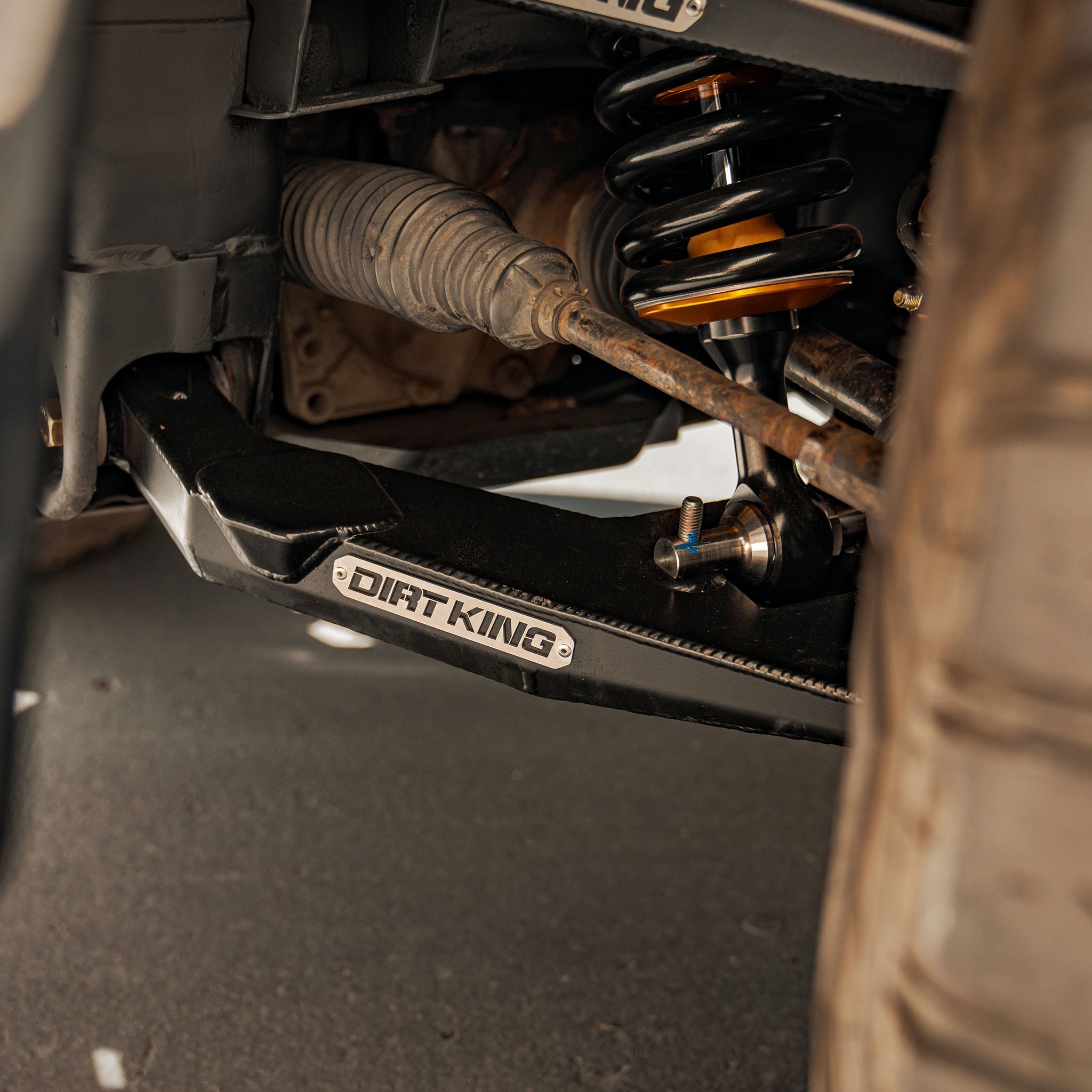

The Dirt King performance lower control arms are built for off-road durability, featuring an internal ribbed design that surpasses OEM strength. These arms are tabbed for bump stops, limit straps, bypasses, and can optionally connect to the factory sway bar using Dirt King sway bar end links.
The arms include heavy-duty, low-maintenance Moog ball joints on the outer pivots and utilize PTFE infused delrin bushings on the inner pivots. They are a direct bolt-on replacement, complete with all necessary hardware. The arms are coated with a durable black powder coat finish. All wearable components are replaceable, ensuring a long-lasting product.
These control arms accommodate a 2.5" King bypass (DK-631908-25KSB) with Dirt King's bypass hoop kit (DK-631710) or our sway bar kit (DK-631955). Note that a 2.5" diameter bypass is the maximum size.
Specifications
- Track Width: Stock
- Maximum Recommended Tire Size: 35”
- Maximum Backspacing: 4.75”
- Minimum Rim Size: 17”
- Compatible with factory sway bar: Yes
- Bump Stop Size: 2.0 x 2.0
- Coil Over Shock Size: OEM replacement coil overs

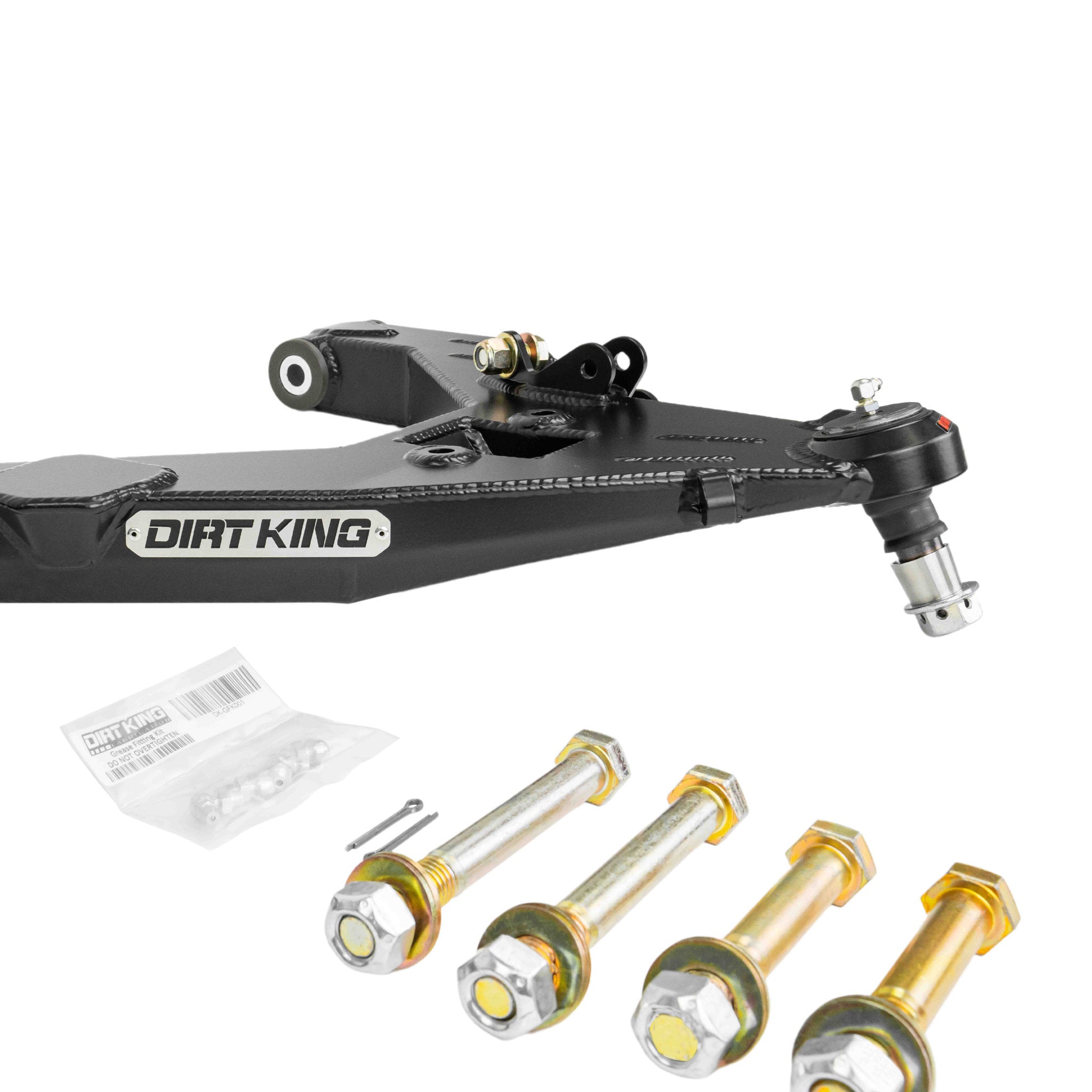

What's Included
- Boxed plate lower control arms
- Delrin bushings
- Weld washers
- Moog ball joints
- Brushed stainless steel logo plates
- Grade 8 mounting hardware
- Durable black powder coat finish
- Dirt King sticker pack
- Installation instructions
Features
- CAD designed
- Internally ribbed design
- Grease fitting ports for easy servicing
- Zinc plated components for corrosion resistance
- Bump stop plating
- Limit strap tabbing
- Bypass tabbing
- Sway bar tabbing
- Professionally MIG welded
- Proudly made in the USA
Instructions
Compatibility
2007-2018 Chevy Silverado 1500 2WD / 4WD
2007-2018 GMC Sierra 1500 2WD / 4WD
*If you plan on adding bypass shock hoops with these lower control arms you may need longer mounting hardware to attach the coilovers to the coil bucket.
