Offset Winch Snatch Ring

Order Quantity 1 = 1 Ring

For use with synthetic HMPE winch line ONLY

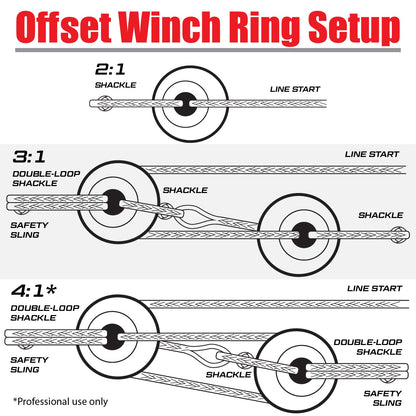

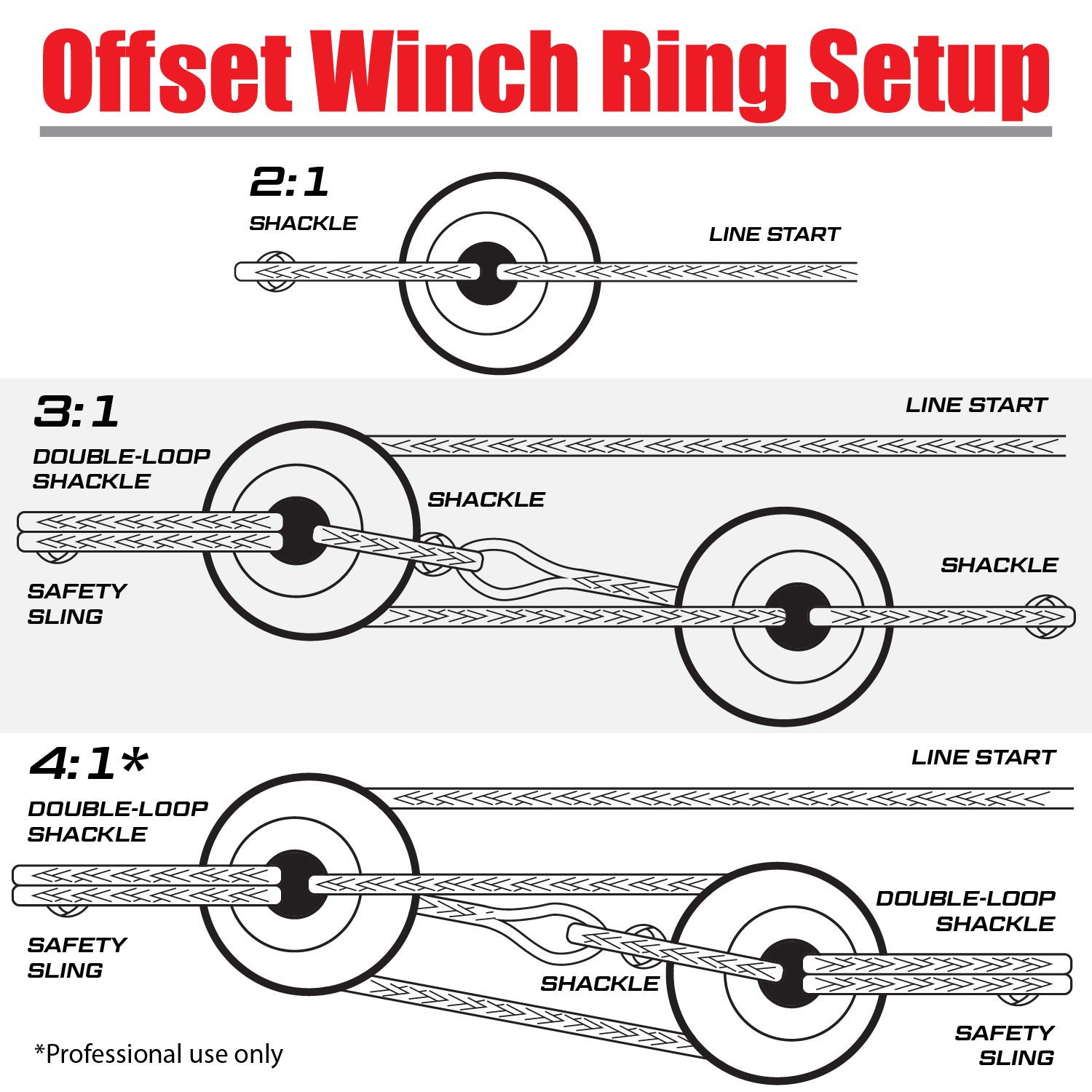

WARNING: When performing a winch recovery, start with a single line pull (1:1), and work up to other configurations, ie 2:1 ---> 3:1, etc. The risk of overloading your tow/connection points increases with each additional configuration. Never exceed a 5:1 pull with this ring.

A 4:1 pull should ONLY be done by professionals, using 2 winch rings, a safety catch sling, and double loop 7/16" soft shackles are required. In these configurations, it is easy to exceed the rating of some tow/connection points, you MUST KNOW those ratings before use.

These are NOT designed for heavy-duty wrecker use. Use ONLY electric bumper-mounted winches rated at 12k lb or less. NEVER use Steel Cable with this ring, Only use a Synthetic (HMPE) winch line no larger than 7/16" diameter. Not for over-head use.

Description

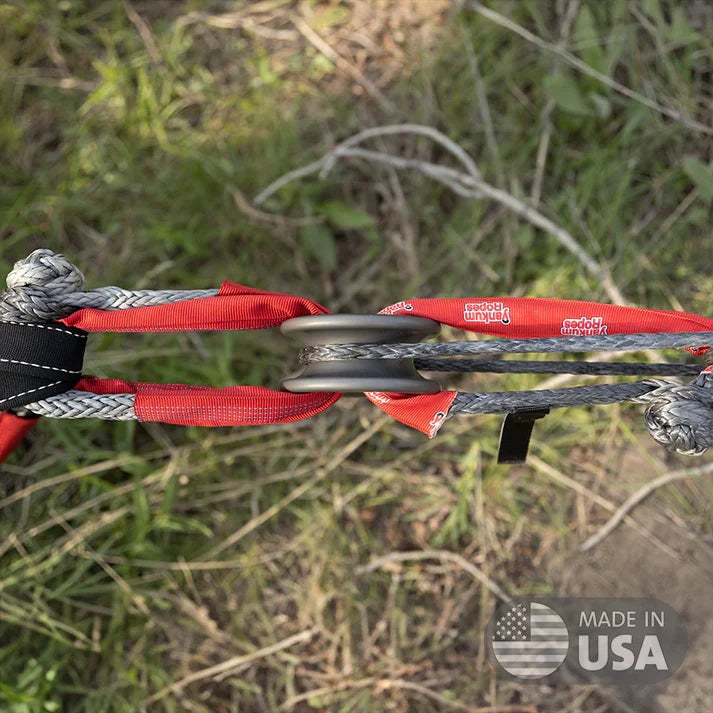

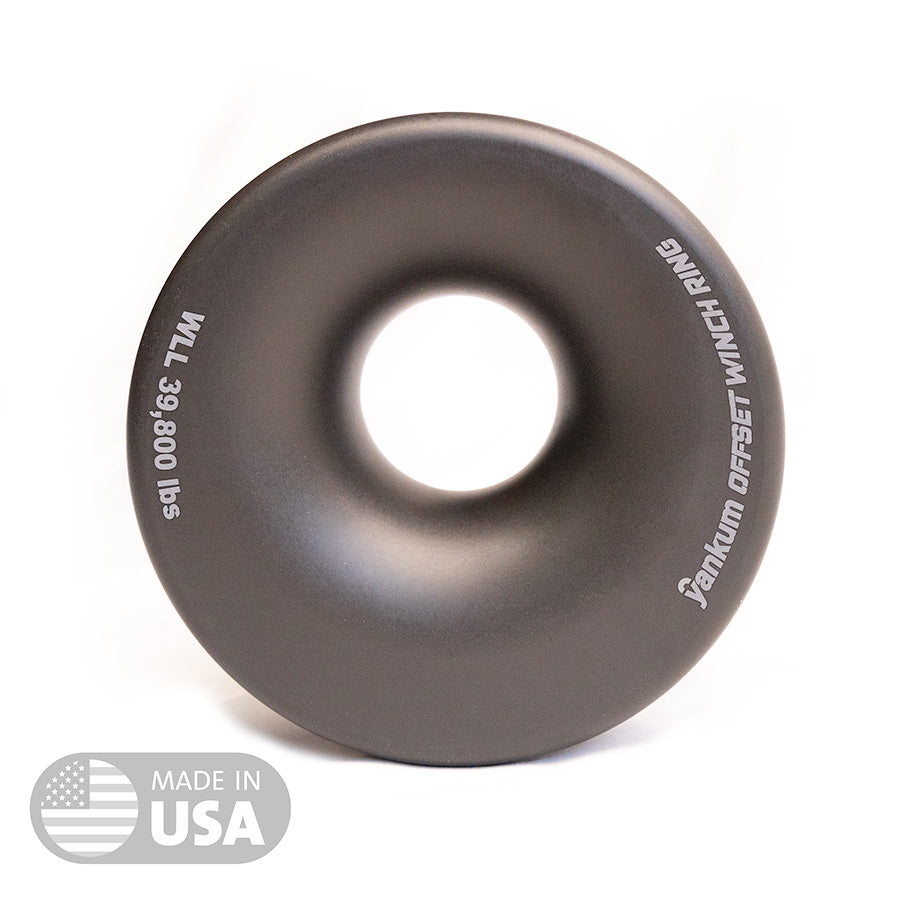

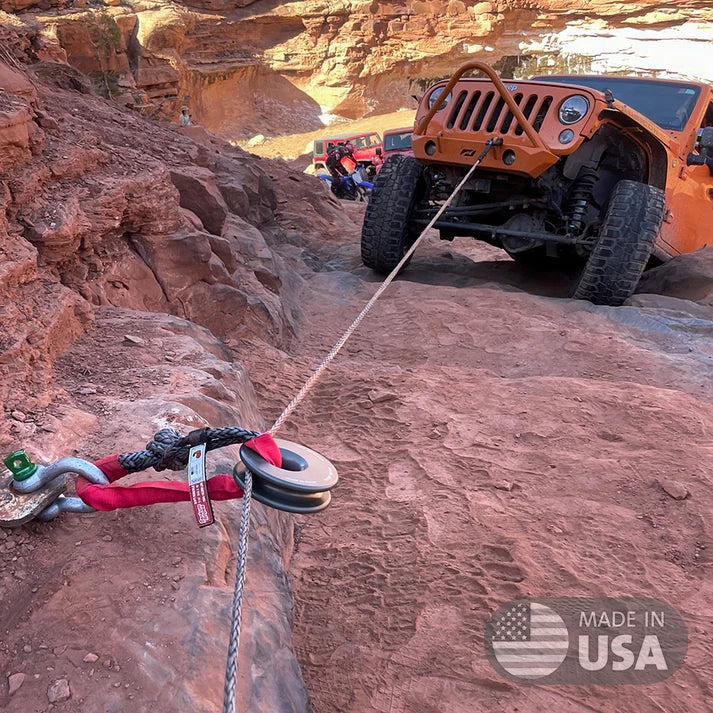

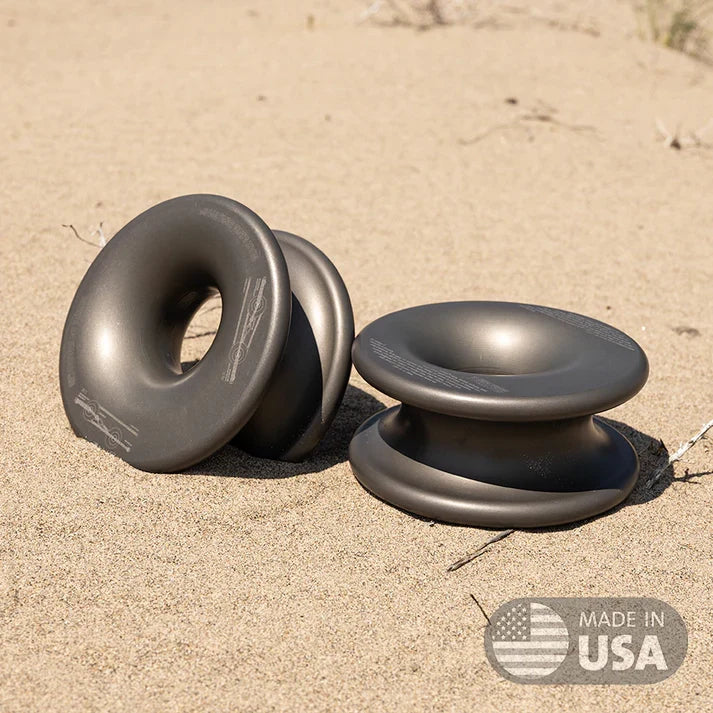

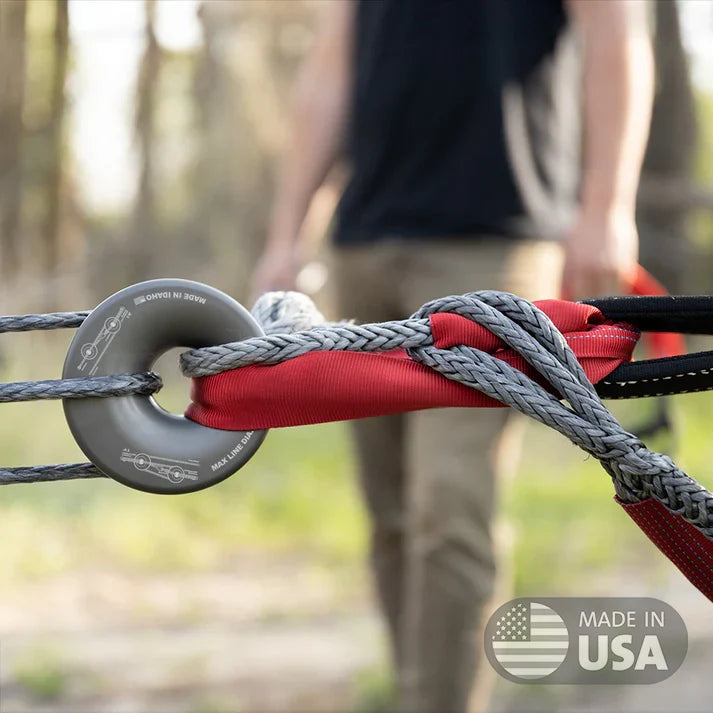

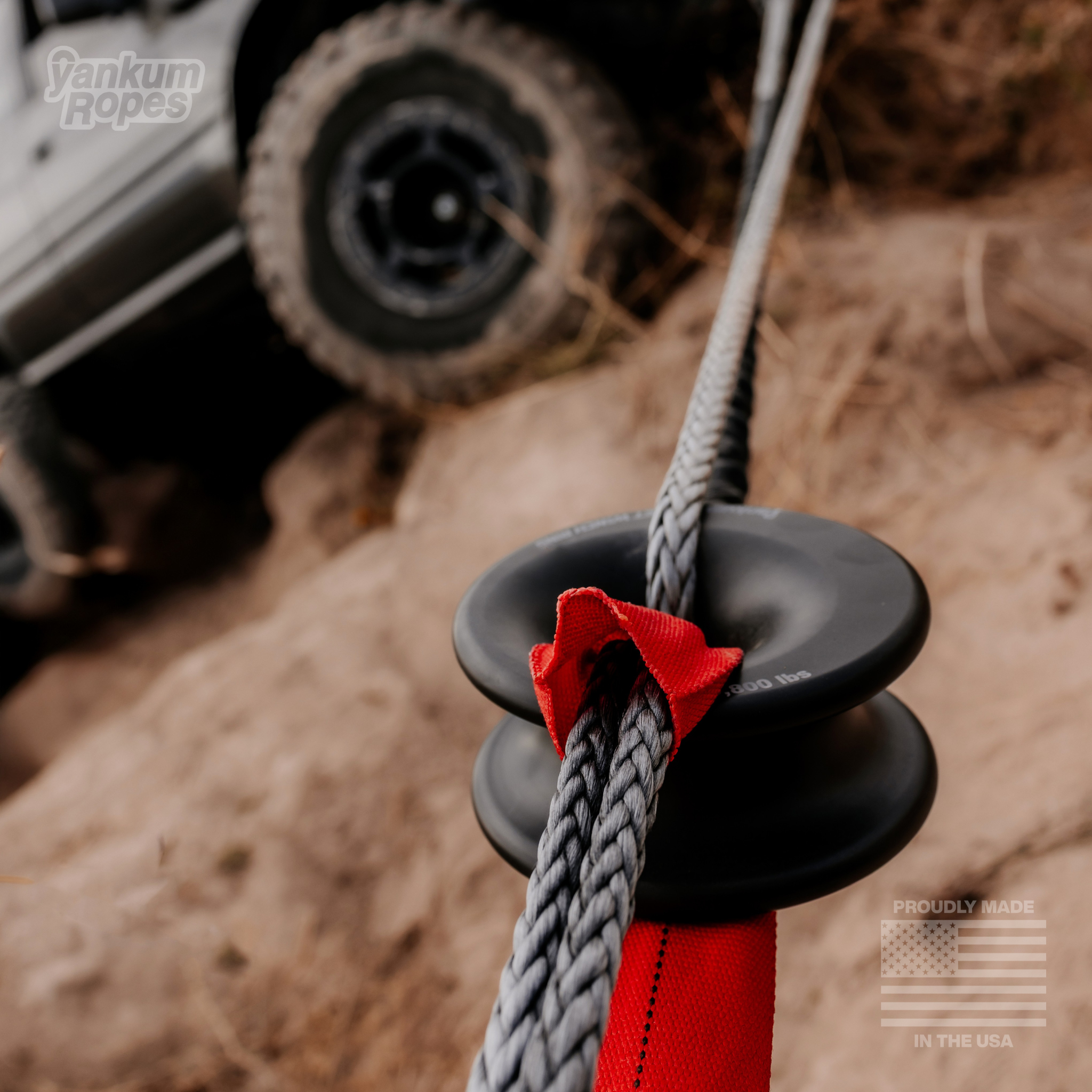

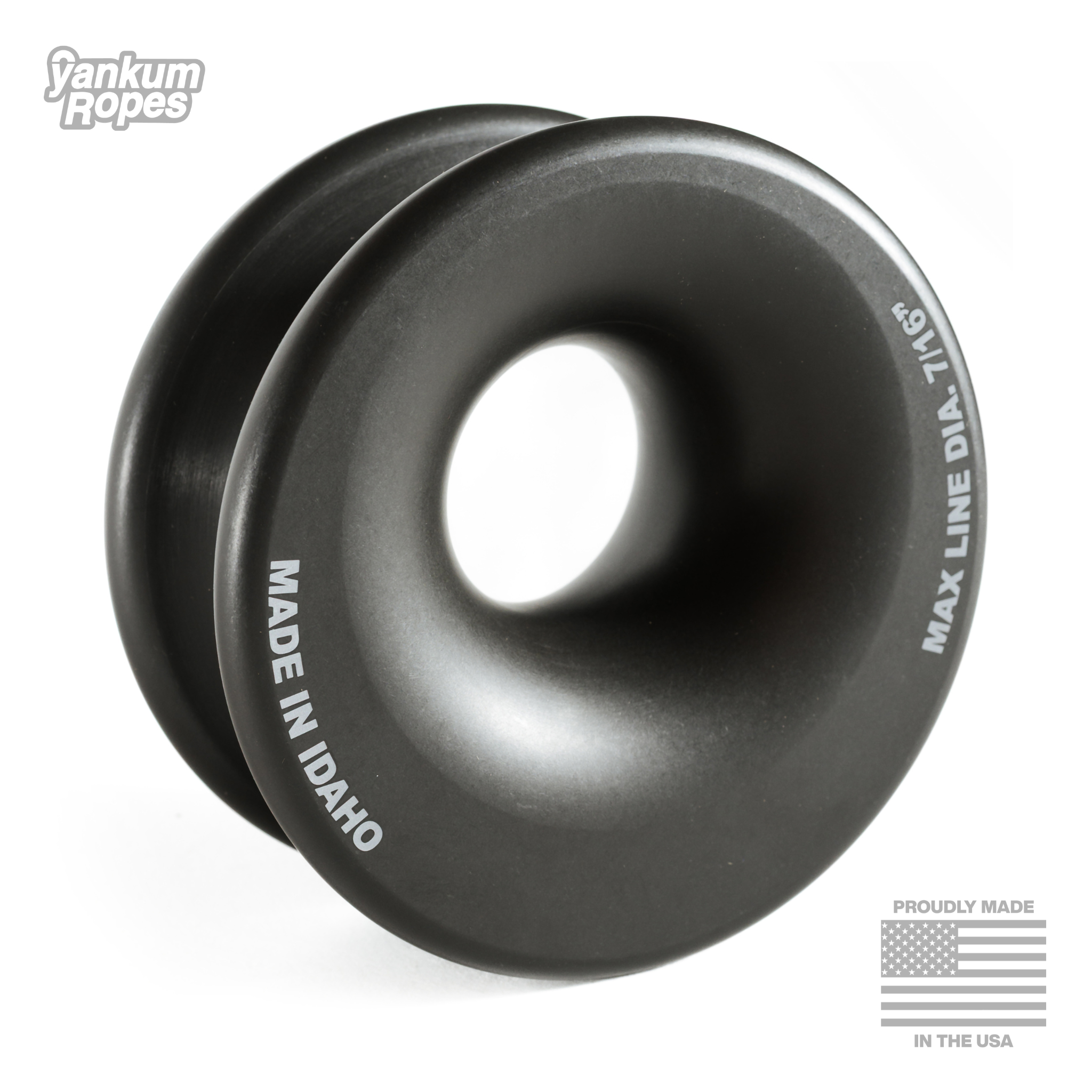

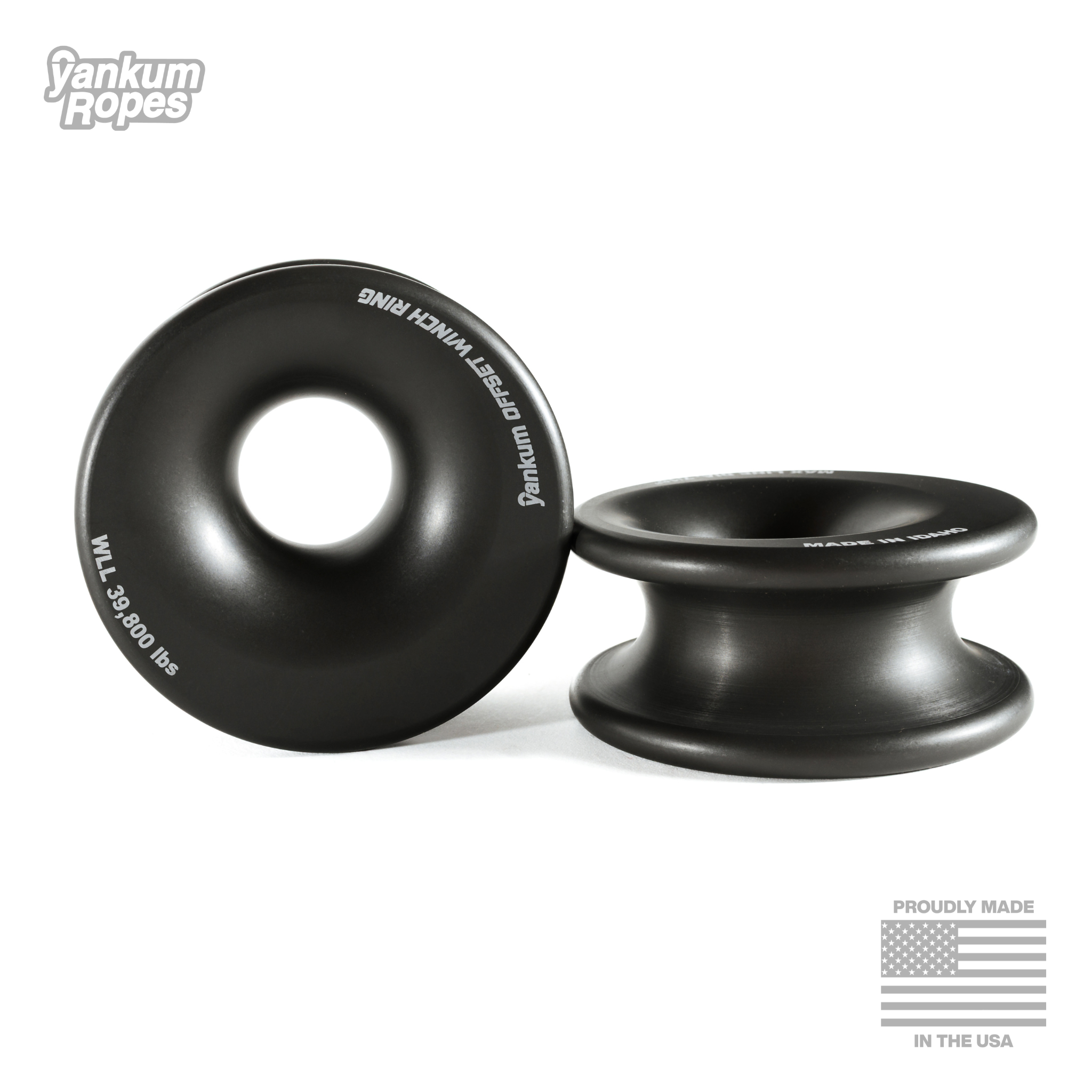

The Offset Winch Snatch Ring is a machined aluminum winching block designed for synthetic HMPE winch line up to 7/16" diameter. Two rings and three soft shackles do the job of four standard snatch blocks and five hard shackles at a fraction of the weight and zero bearing maintenance. Built for electric bumper-mounted winches rated 12,000 lbs or less.

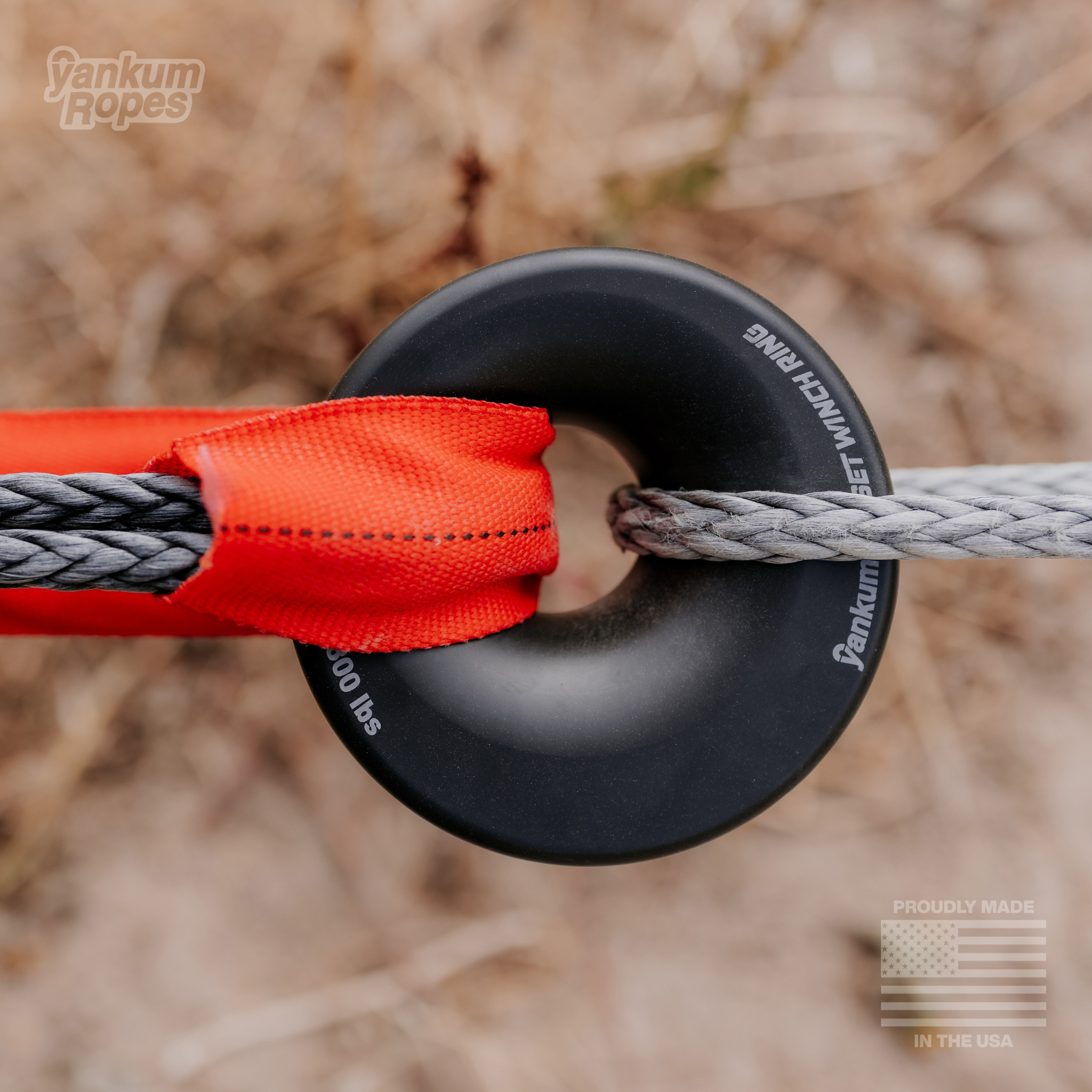

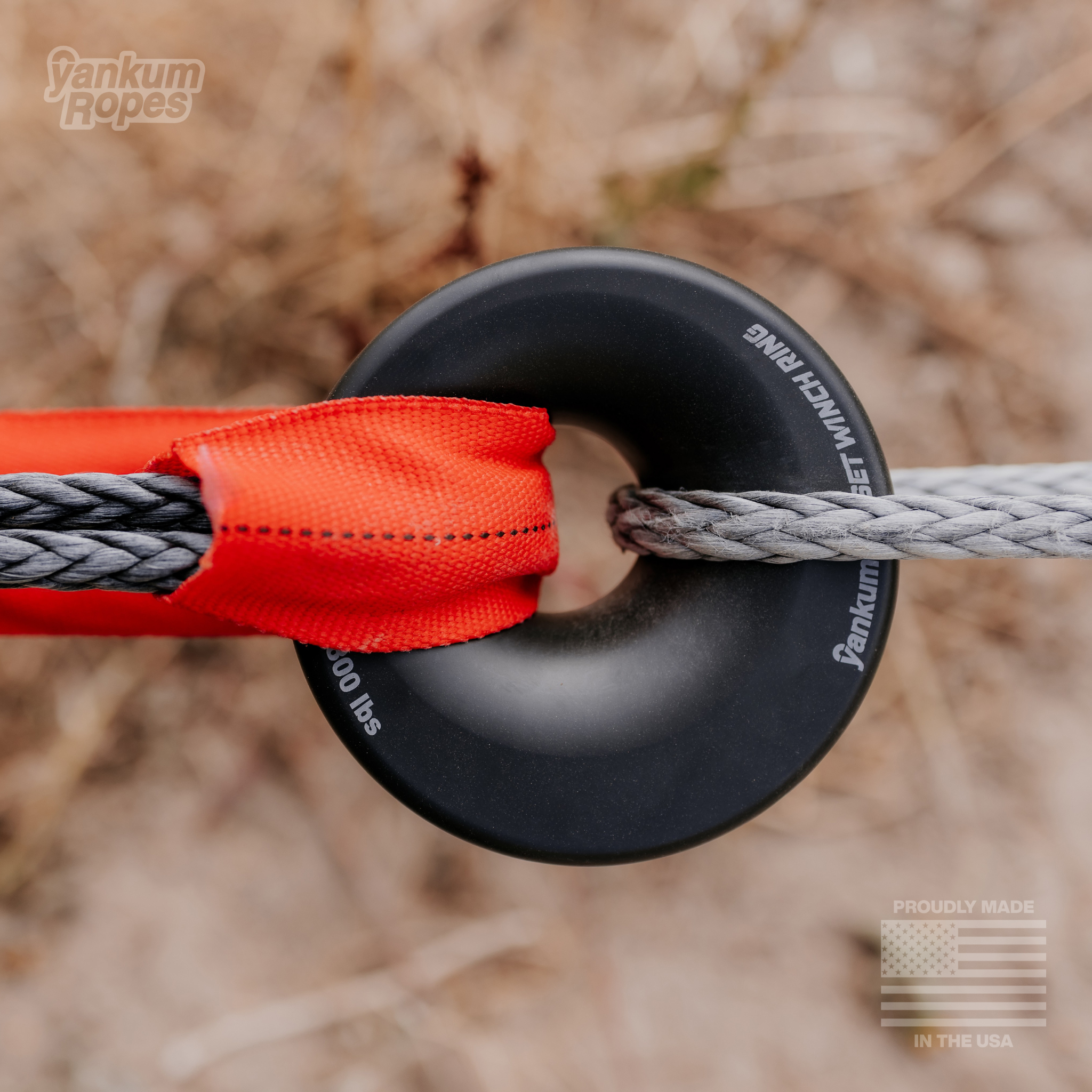

The offset design solves a real problem: on a 2:1 setup, you run the winch line through the hole instead of the groove, which means the line physically cannot fall out when tension drops. No babysitter required. It also accepts a cow hitch extension, so you can park farther from the stuck vehicle and reduce how often you have to stop and re-rig.

• Machined from USA Kiser billet 6061 aircraft aluminum in Burley, Idaho
• Type III hard anodized finish in gun metal gray, toughest available
• MBS 79,590 lbs+ pull-apart tested
• 2.2 lbs per ring; two rings replace 4 snatch blocks and 5 hard shackles

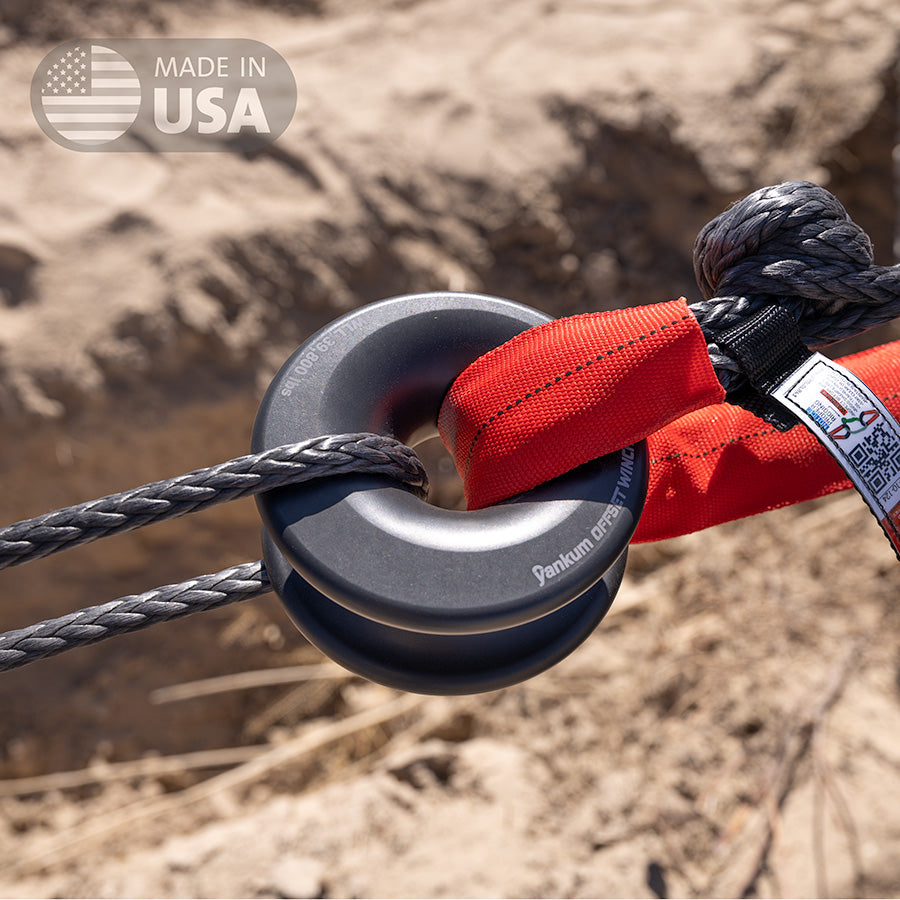

• Offset hole allows through-hole rigging on 2:1 setups so the line stays put under slack

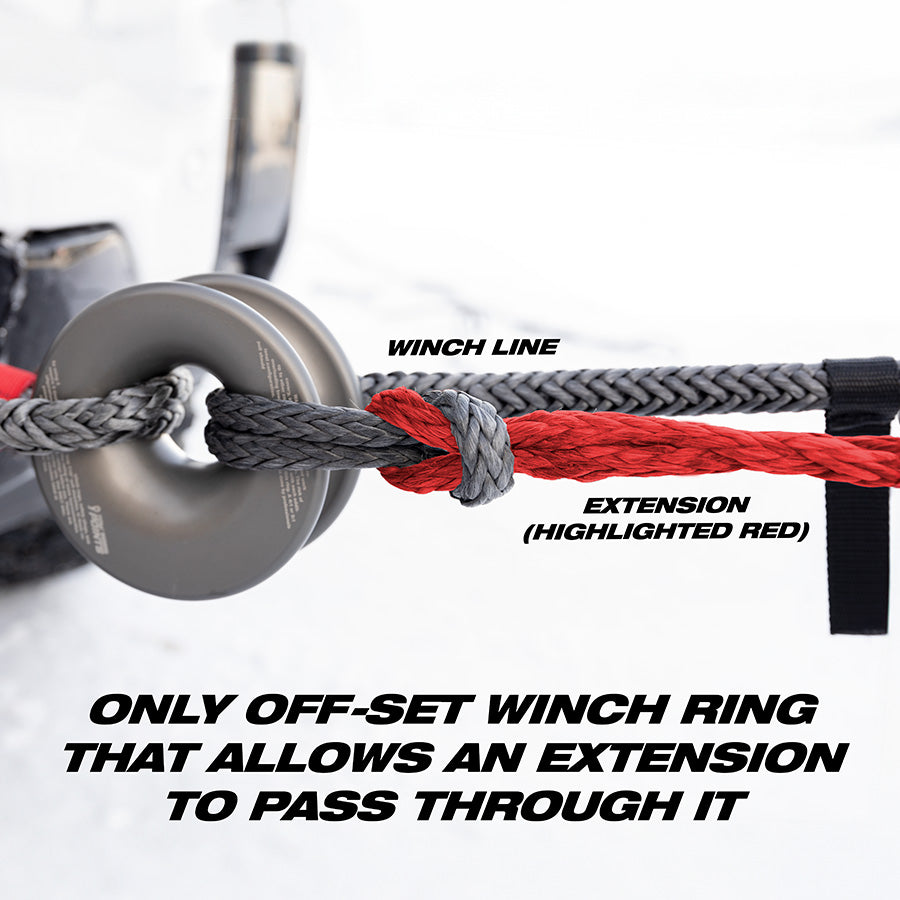

• Accepts cow hitch winch line extension for fewer re-rigging stops mid-recovery
• Compatible with HMPE winch line up to 7/16" diameter only, never steel cable
• Zero corrosion, zero bearing maintenance
• Laser engraved, machined and anodized in Southern Idaho

Machined and anodized in Southern Idaho. American-made, start to finish.

Specifications

SPECIFICATIONS

• Type III Hard Anodized Finish in Gun Metal Gray.
• USA Kiser billet 6061 Aircraft Aluminum.
• Machined in Idaho.
• Anodized in Idaho.
• 2.2 lbs

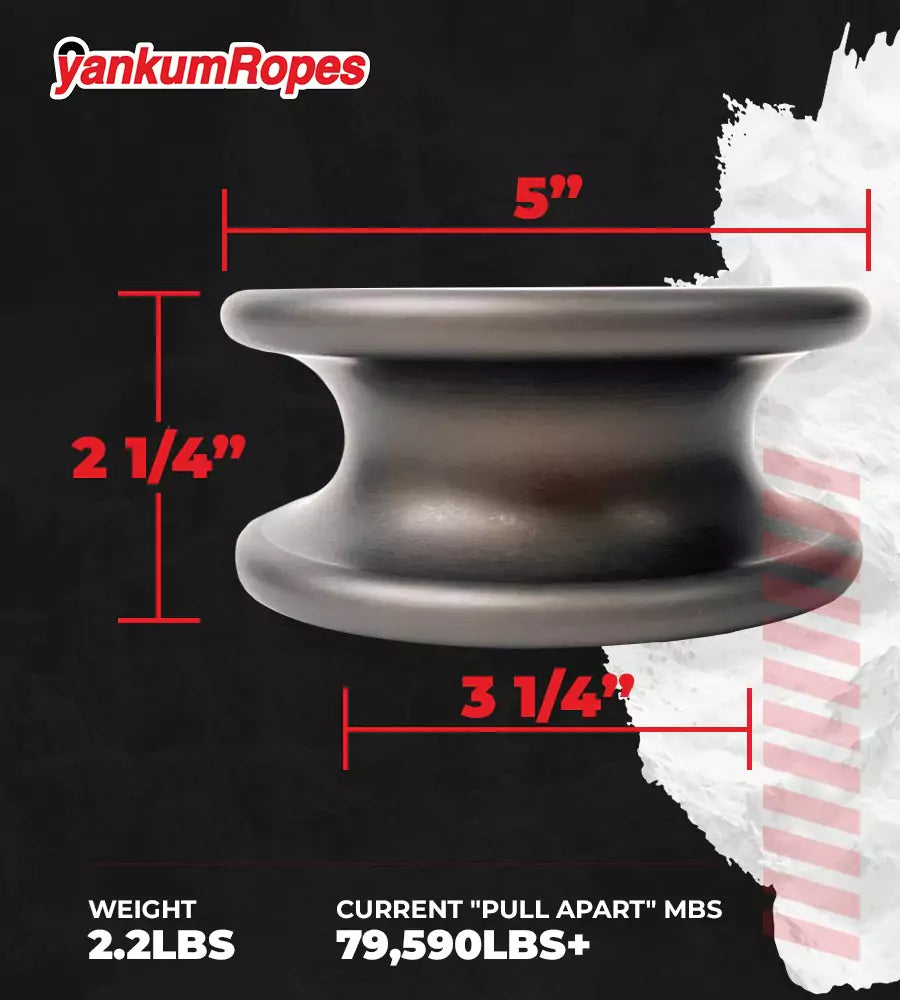

• 5" total diameter.

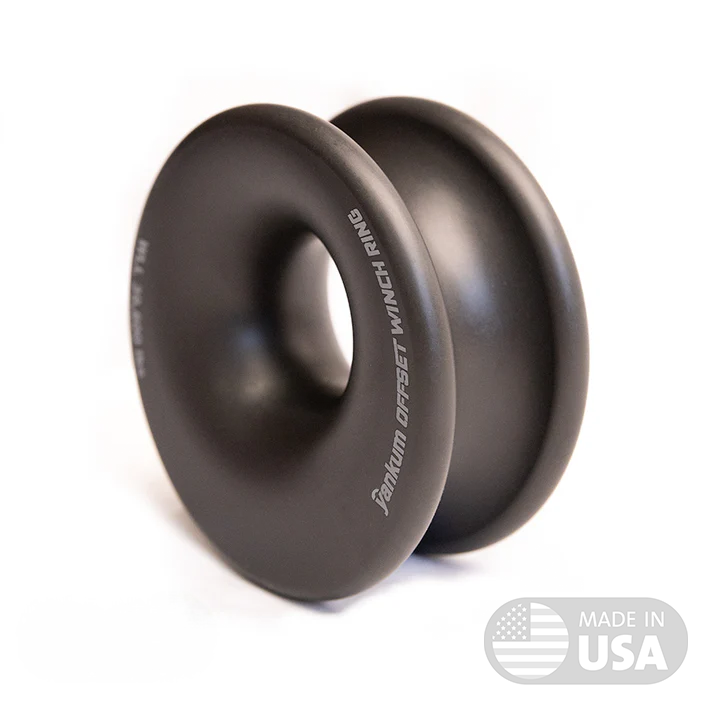

• 3 1/4" groove diameter (8x 3/8" winch line radius transit+).
• 2-1/4" hole radius.  (6x 3/8" winch line radius transit).
• Current "pull apart" MBS 79,590 lbs+

Patent Pending
