Long Travel Fox Spec Coilovers

$2,449.00 USD
$2,449.00 USD
Sale Sold out
Shipping calculated at checkout.

 Description

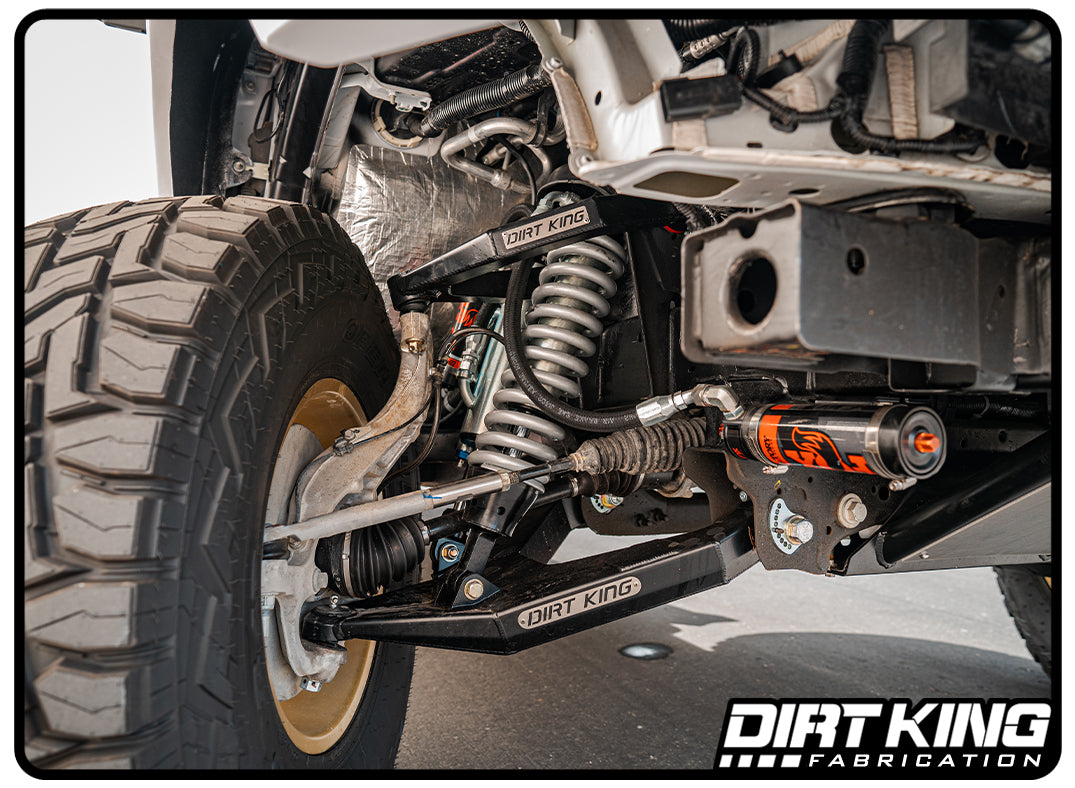

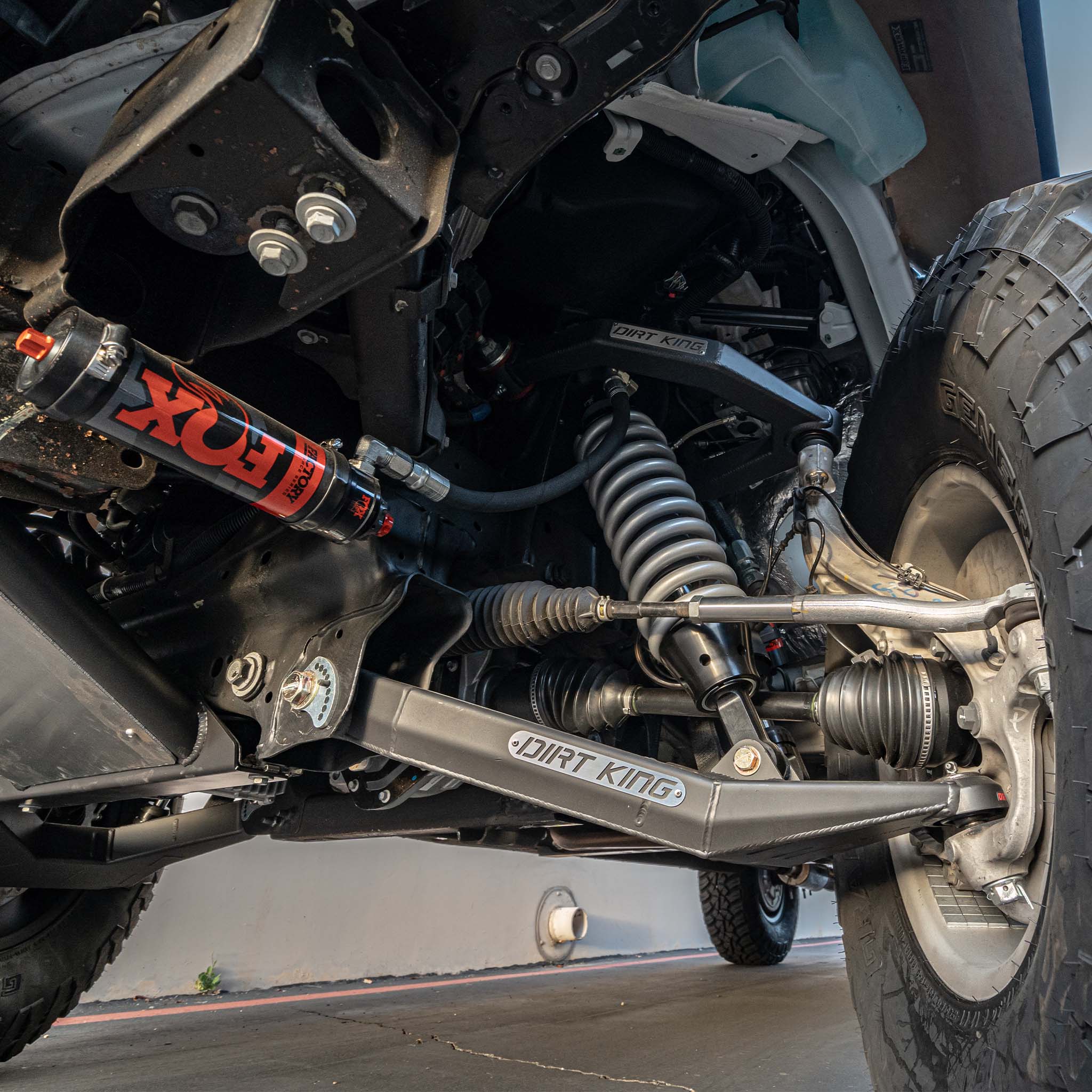

The Dirt King spec coilover shocks were developed specifically for our GM 1500 front long travel suspension system. They are thoroughly tested and tuned for optimum off-road performance and on road drivability. For best handling we recommend upgrading to compression adjusters and internal bypasses. These options will allow you to fine tune your ride quality and provide additional dampening on harsh impacts.

 Specifications

  • Shock Manufacture: Fox
  • Spring Manufacture: Eibach
  • Amount of Lift: Adjustable from 0-3" of lift
  • DSC Adjusters

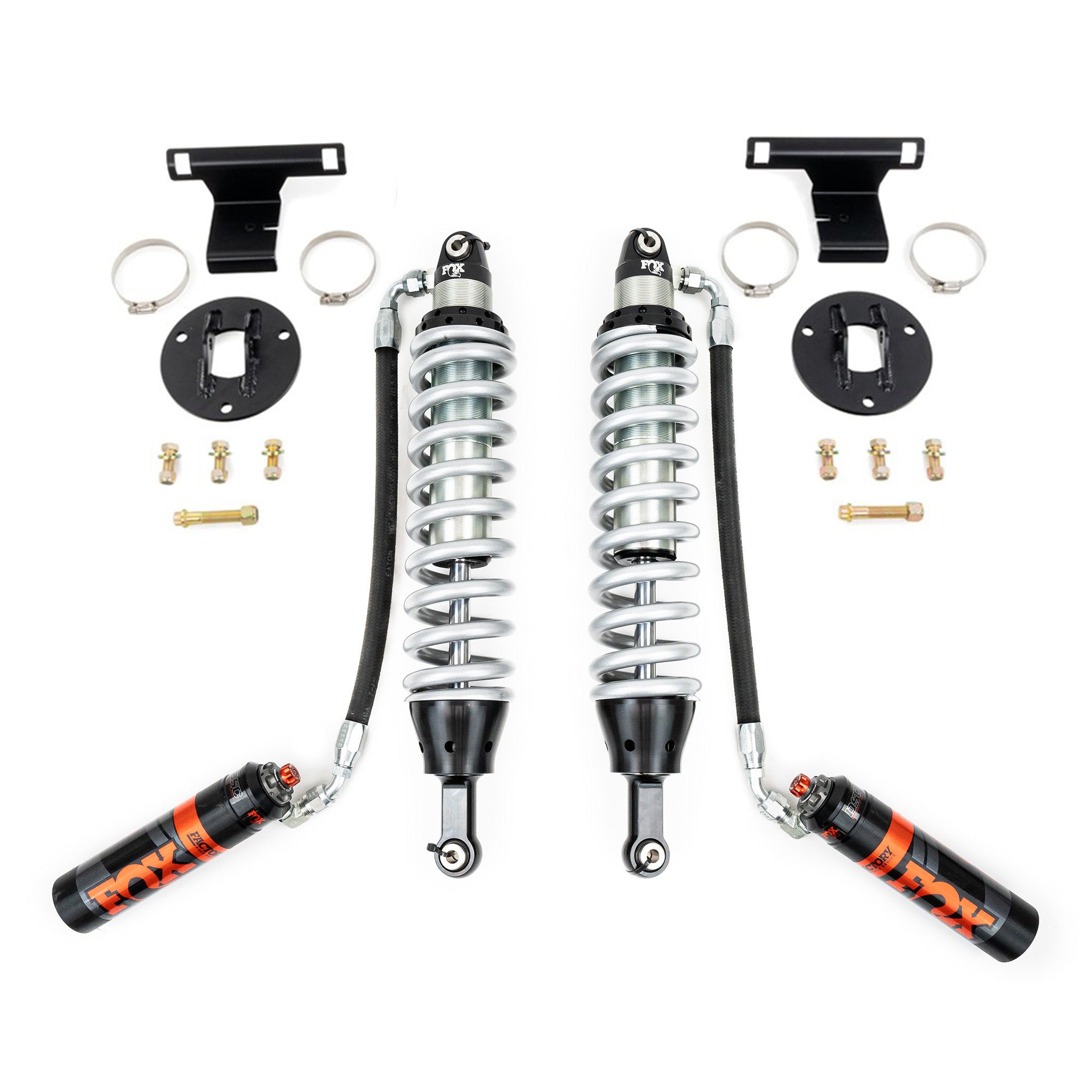

 What's Included

  • Fox spec built shocks
  • Coil bucket shock mounts
  • Bolt on reservoir mounts
  • All necessary mounting hardware

  Features

Body 2.5" Smooth bore and honed seamless alloy body
Body Plating Zinc-plated and double-clear coated for long lasting finish
External Reservoir 2.5" Smooth bore and honed seamless alloy reservoir
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Spring Application specific, adjustable 3.0 Eibach® racing springs
Shaft 7/8" hard chrome plated steel shafts
Piston 6061-T6 hard-anodized, high flow aluminum piston
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Oil JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bearing PTFE-lined, heat-treated, alloy steel spherical
Mounting For Dirt King long travel kits only
Adjustments Ride height preload ring

  Compatibility

Works with the Following Suspension Systems: DK-636908-B

Features

  • Twelve built-in holes perfect for tie straps for use in sand, snow, or dirt
  • Grooved bottom to slide easily though different terrain types
  • Curved ends to glide easily through terrain
  • Universal adapting bowl to fit most UTVs
  • Ultimately, we want the product to be the strongest and most durable in conditions such as sand, dirt or snow. Therefore, we have spent a lot of time researching and developing the Safe Sled. We used HDPE plastic, which is found to be the most durable material for off-road purposes, to stand against the pressure and load.

Safe Sled to pull your UTV out of any situation

Specification

  • 93.2L*38.1W*18H per unit
  • 5mm wall thickness , unit weight is approximately 7.5lbs (3.5-4kg)
