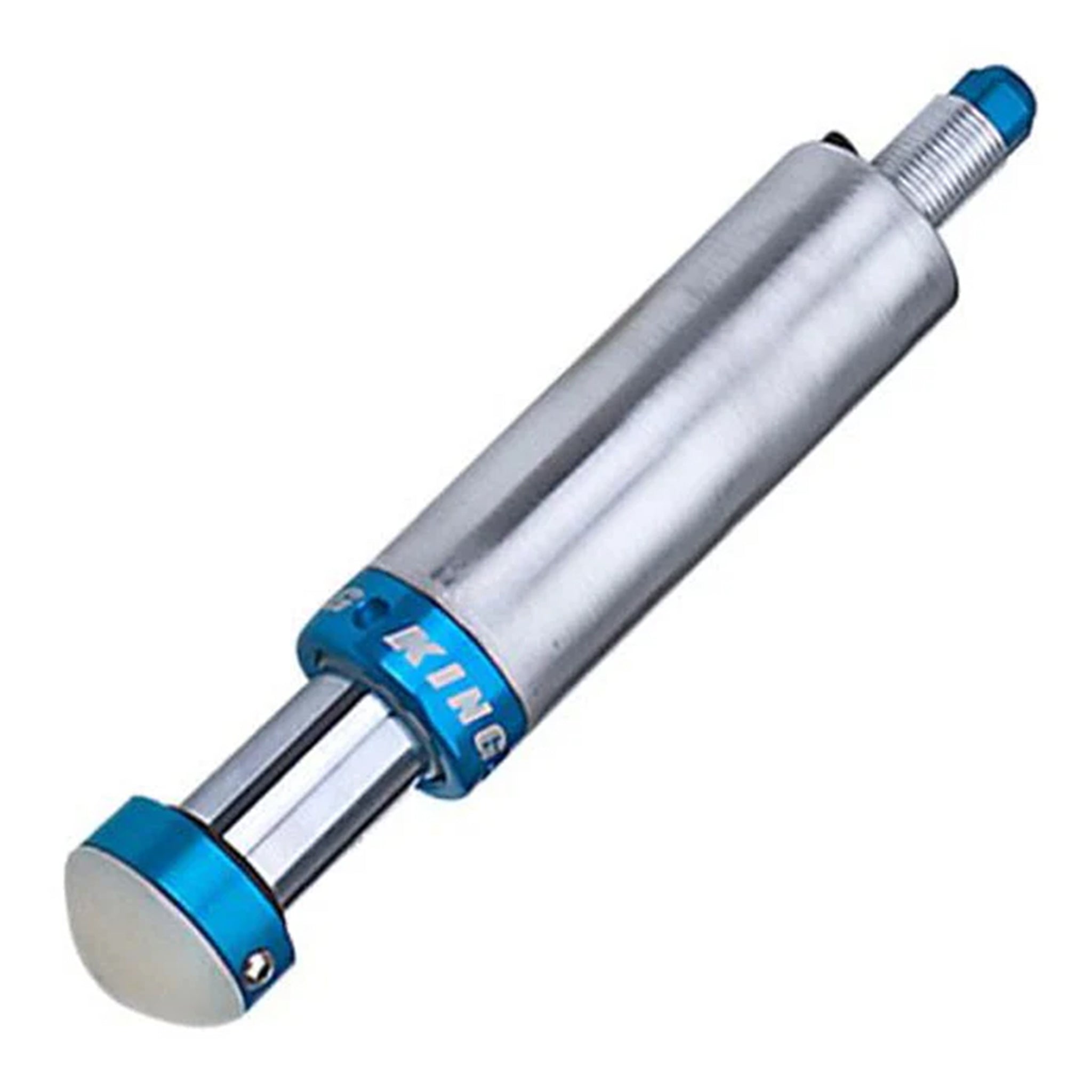

King Bump Stops

$325.00 USD
$325.00 USD
Sale Sold out
Shipping calculated at checkout.
Size

 Description

Off-road Factory Race Series bump stops were developed with top off-road racing teams to provide precise control of the last few inches of suspension travel. By applying our race-proven damping technology in a purpose-built, stand-alone component, you can use every bit of suspension travel without harsh bottoming.

The built-in King Air Valve (FAV) Valve allows precise nitrogen charge adjustments to provide a wide range of bottoming control. The durable construction and replaceable Delrin® strike pad are built to take the abuse while providing predictable and quiet operation.

 Specifications

  • Manufacture: King

 What's Included

  • 1 King Bump Stop

  Features

Body Smooth bore and honed seamless steel
Body Plating Zinc plated and clear coated for a long lasting finish
Components Black anodized, CNC machined 6061-T6 billet aluminum
Valving Tunable, velocity sensitive deburred valve shims
Seals Redundant sealing pack system, main seal, wiper seal, scraper seal
Pad Replaceable Delrin® strike pad
Shafts Hard chromed 4130 steel
Options Custom compression and rebound valving available (Add -1 to end of part number)
Adjustments Nitrogen Pressure
Top Mount Eyelet
Bottom Mount Eyelet
Reservoir Emulsion
Valving STANDARD

  Compatibility

Universal

Features

  • Twelve built-in holes perfect for tie straps for use in sand, snow, or dirt
  • Grooved bottom to slide easily though different terrain types
  • Curved ends to glide easily through terrain
  • Universal adapting bowl to fit most UTVs
  • Ultimately, we want the product to be the strongest and most durable in conditions such as sand, dirt or snow. Therefore, we have spent a lot of time researching and developing the Safe Sled. We used HDPE plastic, which is found to be the most durable material for off-road purposes, to stand against the pressure and load.

Safe Sled to pull your UTV out of any situation

Specification

  • 36''L*15''W*7''H per unit
  • 5mm wall thickness , unit weight is approximately 7.5lbs (3.5-4kg)
