Inner Sleeves
Regular price
$4.00 USD
Regular price
Sale price
$4.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

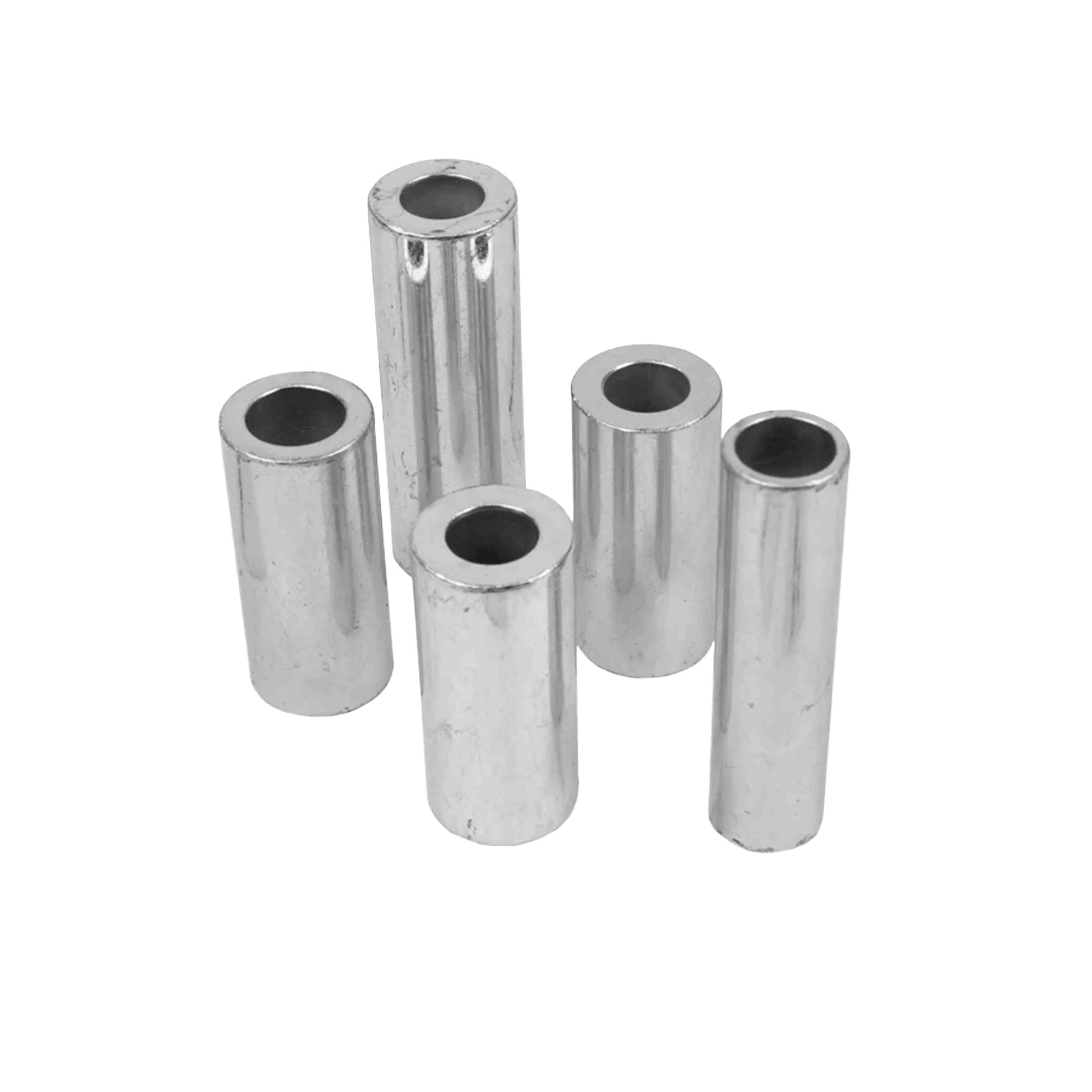

The Dirt King inner sleeves are machined from 1020 steel and are zinc plated. Pricing is for a single unit.
| Part Number |
A | B | C |
|---|---|---|---|
| DK-IB8901960 | 1.96" | 1" | .631" |
| DK-IB8702125 | 2.125" | 1" | .56" |
| DK-IB8702144 | 2.144" | 1" | .56" |
| DK-IB8802206 | 2.206" | 1" | .631" |
| DK-IB8702206 | 2.206" | 1" | .56" |
| DK-IB8702470 | 2.47" | 1" | .563" |
| DK-IB8702530 | 2.53" | 1" | .563" |
| DK-IB9302768 | 2.768" | 1.125" | .753" |
| DK-IB9402768 | 2.768" | 1.125" | .828" |
| DK-IB8702880 | 2.88" | 1" | .563" |
| DK-IB5402925 | 2.925" | 1.125" | .631" |
| DK-IB5403020 | 3.02" | 1.125" | .625" |
| DK-IB5003304 | 3.304" | 1.25" | .906" |
| DK-IB8703482 | 3.482" | 1" | .560" |
| DK-IB8903482 | 3.482" | 1" | .631" |
| DK-IB5403550 | 3.55" | 1.125" | .63" |
| DK-IB9203702 | 3.702" | 1.125" | .719" |
| DK-IB9203797 | 3.797" | 1.125" | .719" |
| DK-IB5403830 | 3.83" | 1.125" | .630" |
| DK-IB9203930 | 3.93" | 1.125" | .715" |
| DK-IB9204188 | 4.188" | 1.125" | .709" |
| DK-IB9204520 | 4.52" | 1.125" | .715" |
| DK-IB8202720 | 2.72" | .75" | .560" |
| DK-IB8203000 | 3" | .75" | .580" |
| DK-IB8203450 | 3.45" | .75" | .560" |
Features
Features
- Twelve built-in holes perfect for tie straps for use in sand, snow, or dirt
- Grooved bottom to slide easily though different terrain types
- Curved ends to glide easily through terrain
- Universal adapting bowl to fit most UTVs
- Ultimately, we want the product to be the strongest and most durable in conditions such as sand, dirt or snow. Therefore, we have spent a lot of time researching and developing the Safe Sled. We used HDPE plastic, which is found to be the most durable material for off-road purposes, to stand against the pressure and load.
Safe Sled to pull your UTV out of any situation
Specification
Specification
- 93.2L*38.1W*18H per unit
- 5mm wall thickness , unit weight is approximately 7.5lbs (3.5-4kg)
