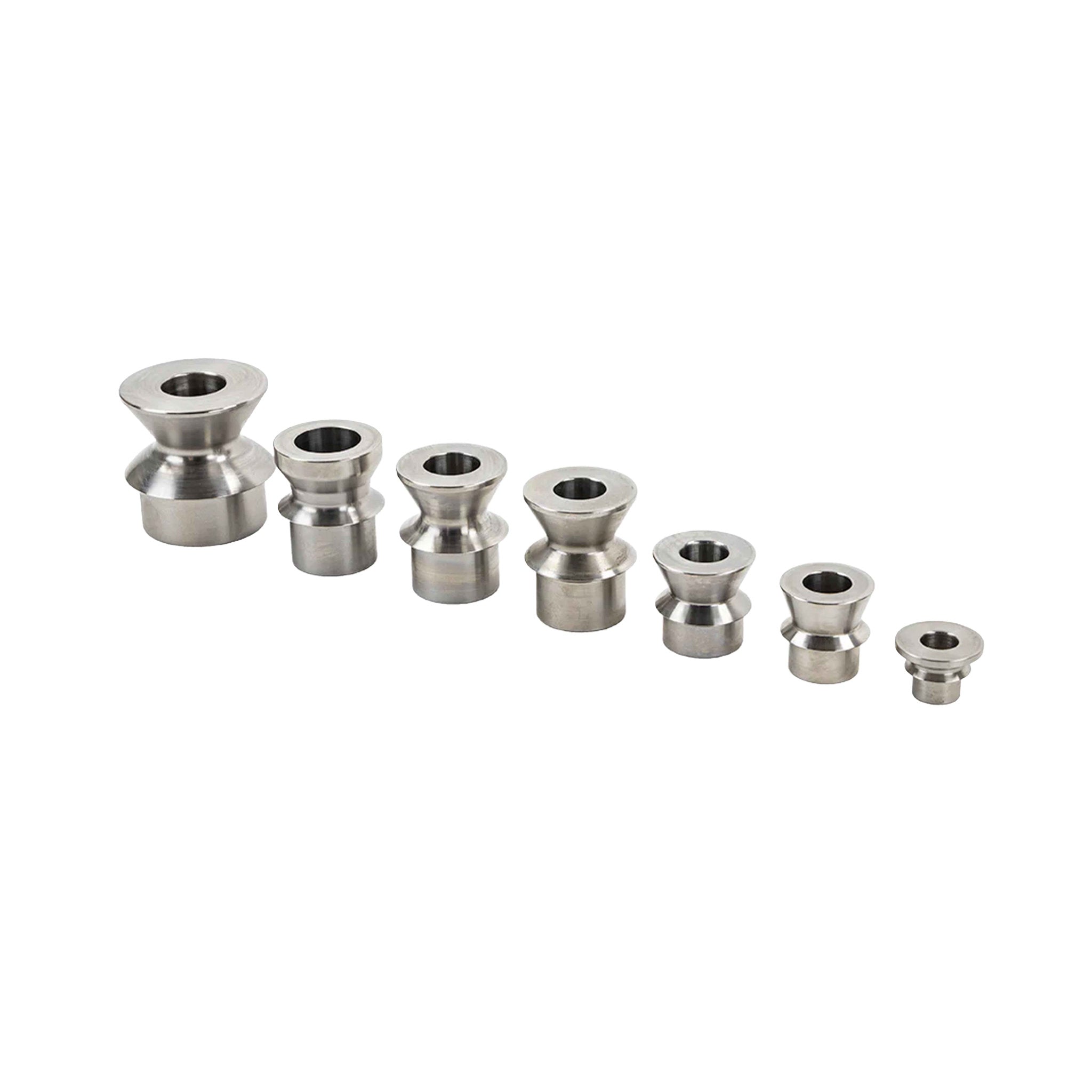

High Misalignment Spacers
Regular price
$10.00 USD
Regular price
$10.00 USD
Sale price
$10.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Description | Uniball/Heim Size | Shoulder | Bolt Size | Stack Height |
|---|---|---|---|---|

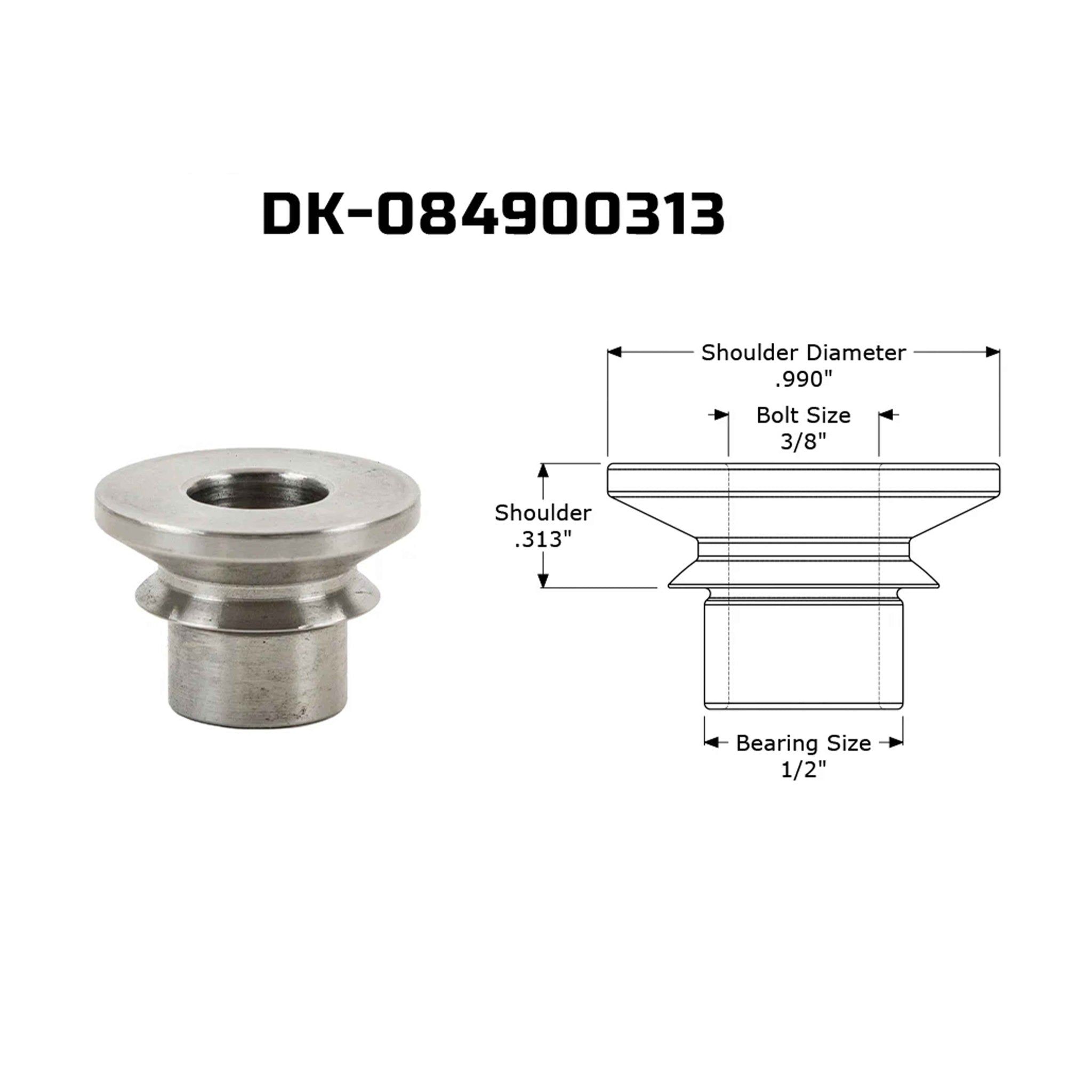

| 1/2" OD X 3/8" ID | 1/2" | .313" | 3/8" | 1.25" |

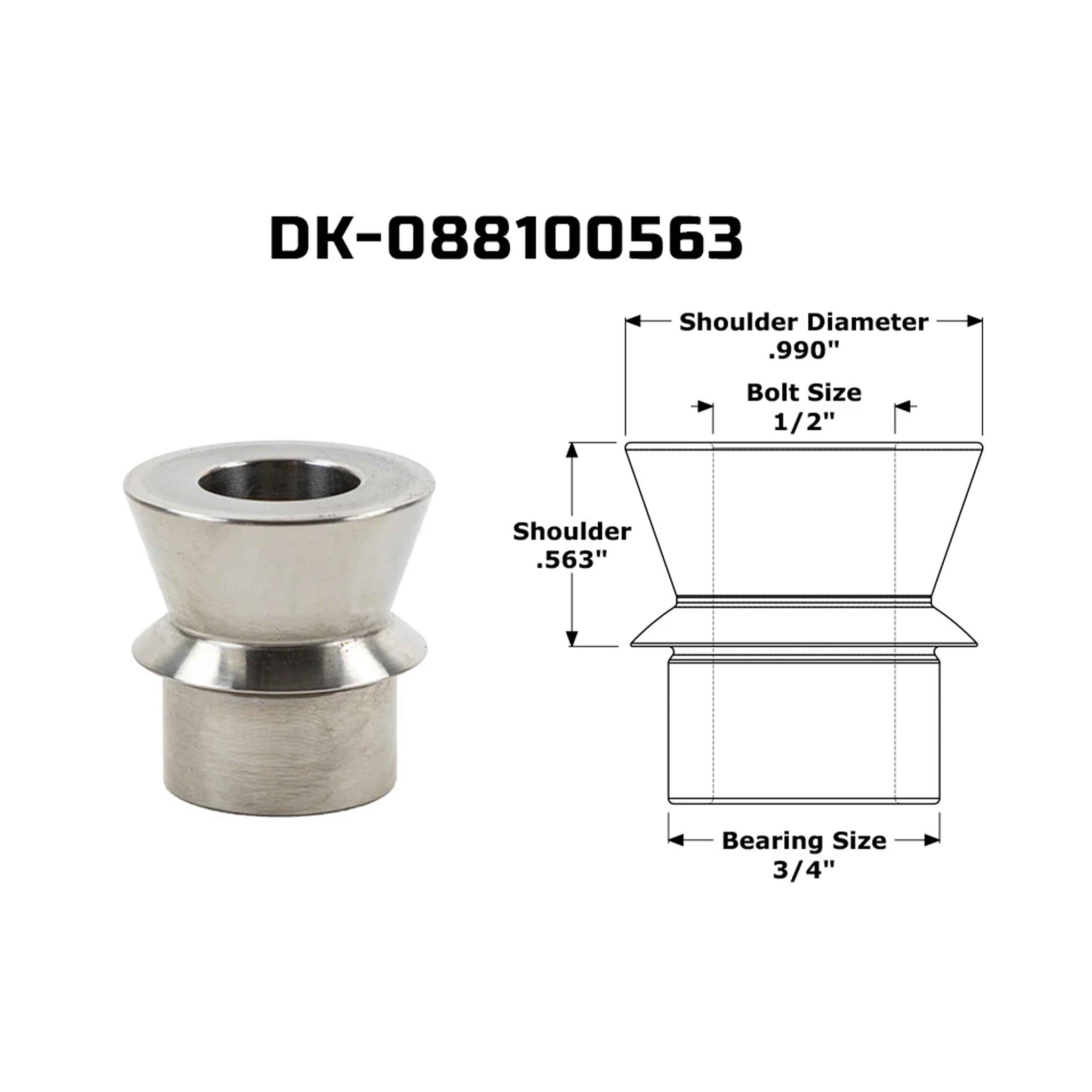

| 3/4" OD X 1/2" ID | 3/4" | .563" | 1/2" | 2" |

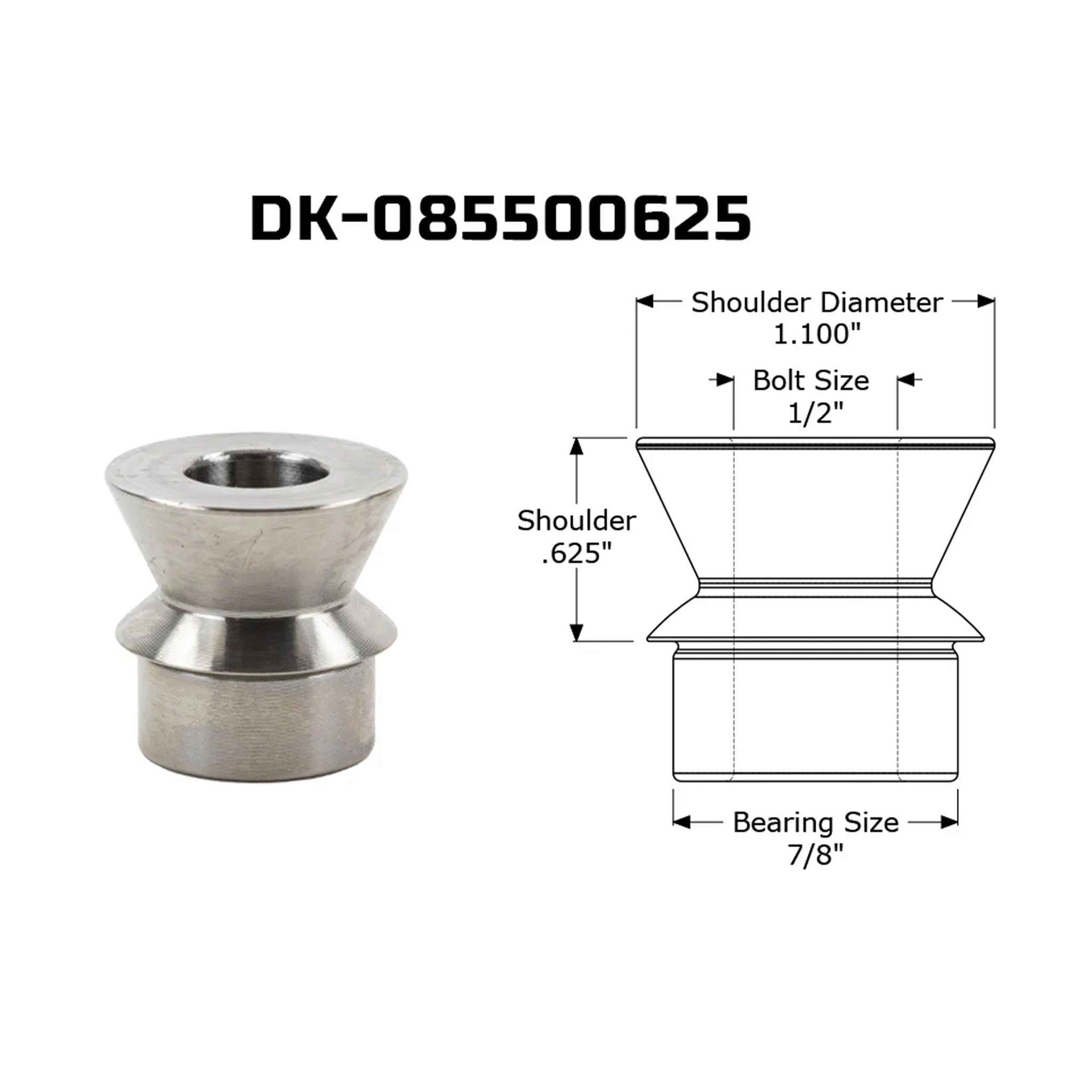

| 7/8" OD X 1/2" ID | 7/8" | .625" | 1/2" | 2.125" |

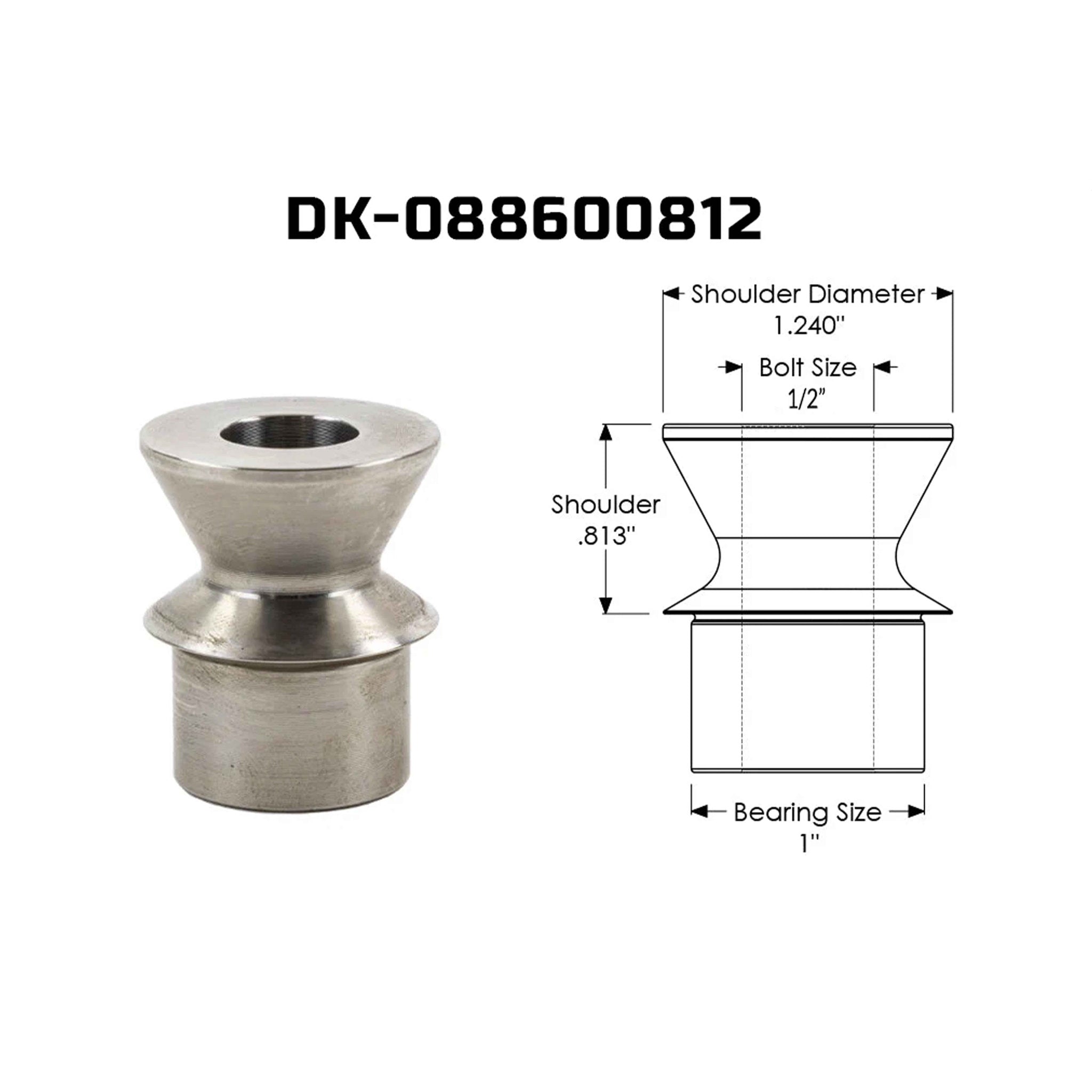

| 1" OD X 1/2" ID | 1" | .813" | 1/2" | 3" |

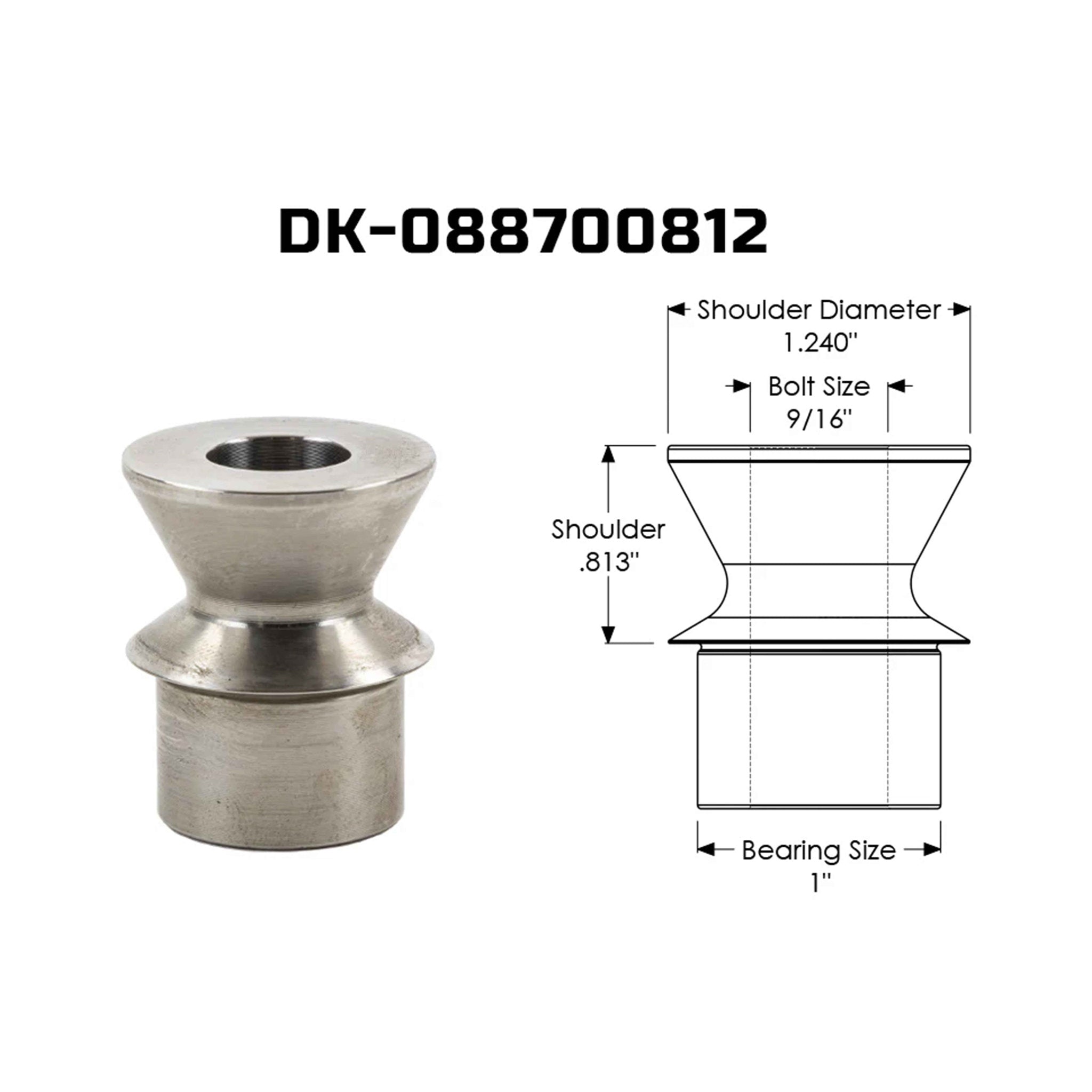

| 1" OD X 9/16" ID | 1" | .813" | 9/16" | 3" |

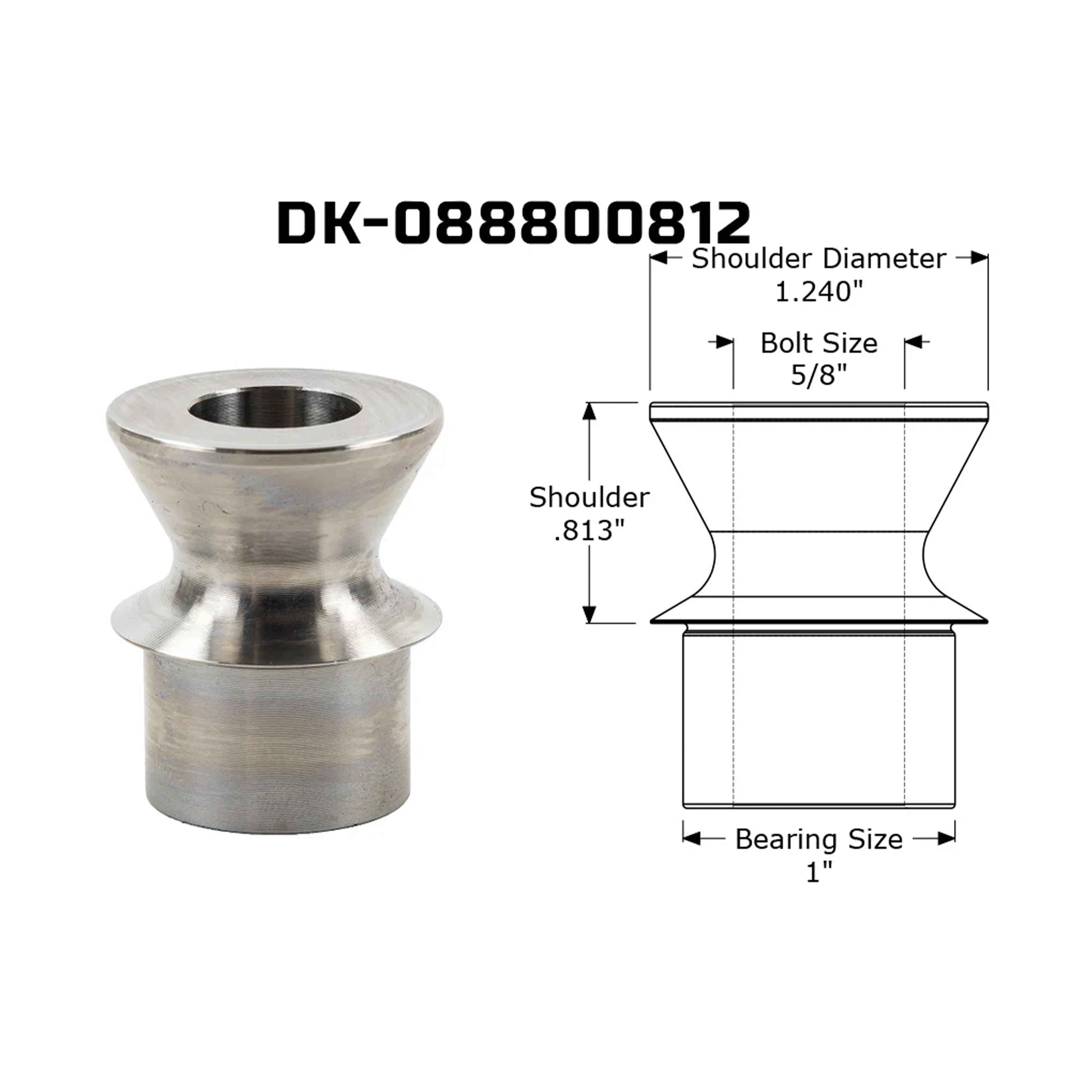

| 1" OD X 5/8" ID | 1" | .813" | 5/8" | 3" |

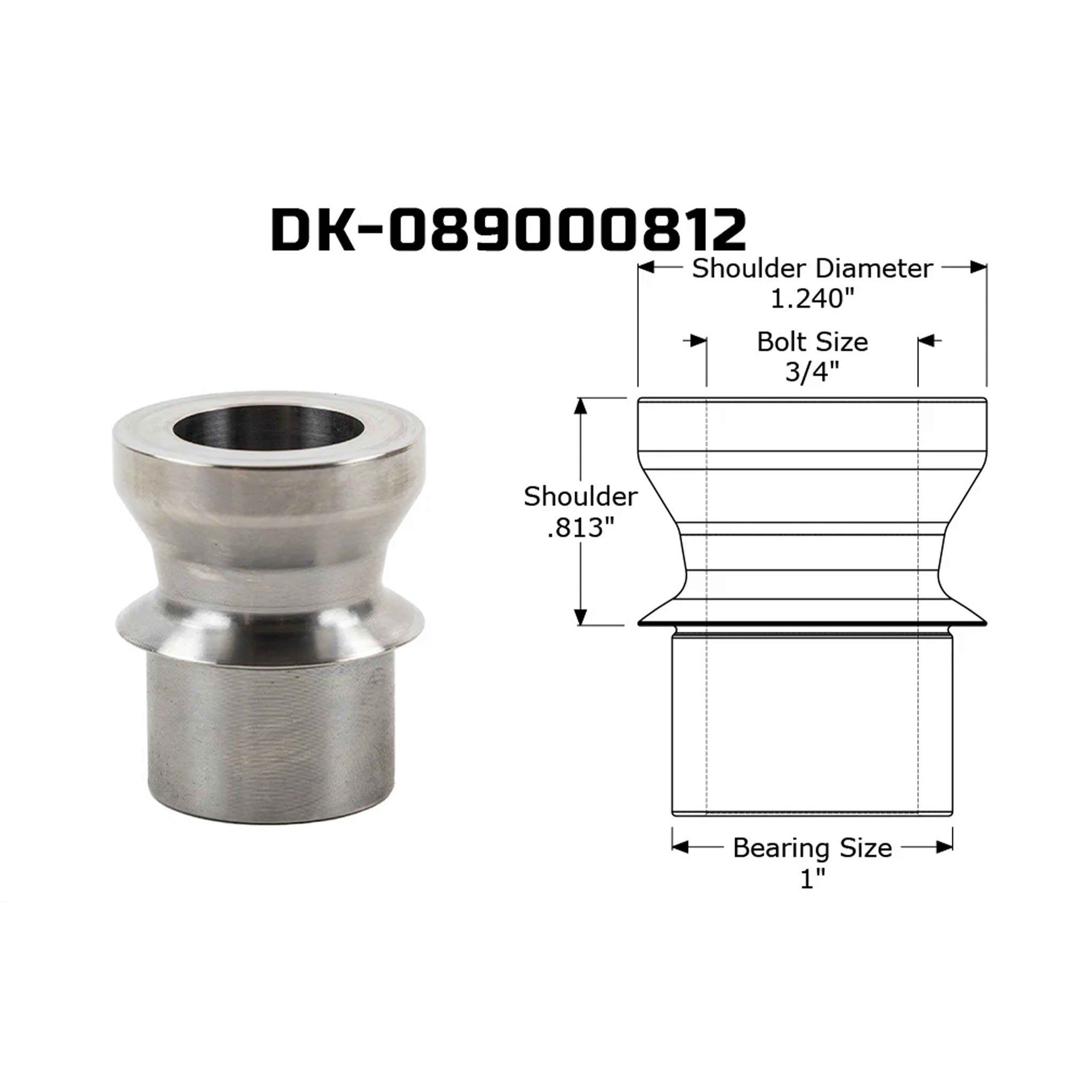

| 1" OD X 3/4" ID | 1" | .813" | 3/4" | 3" |

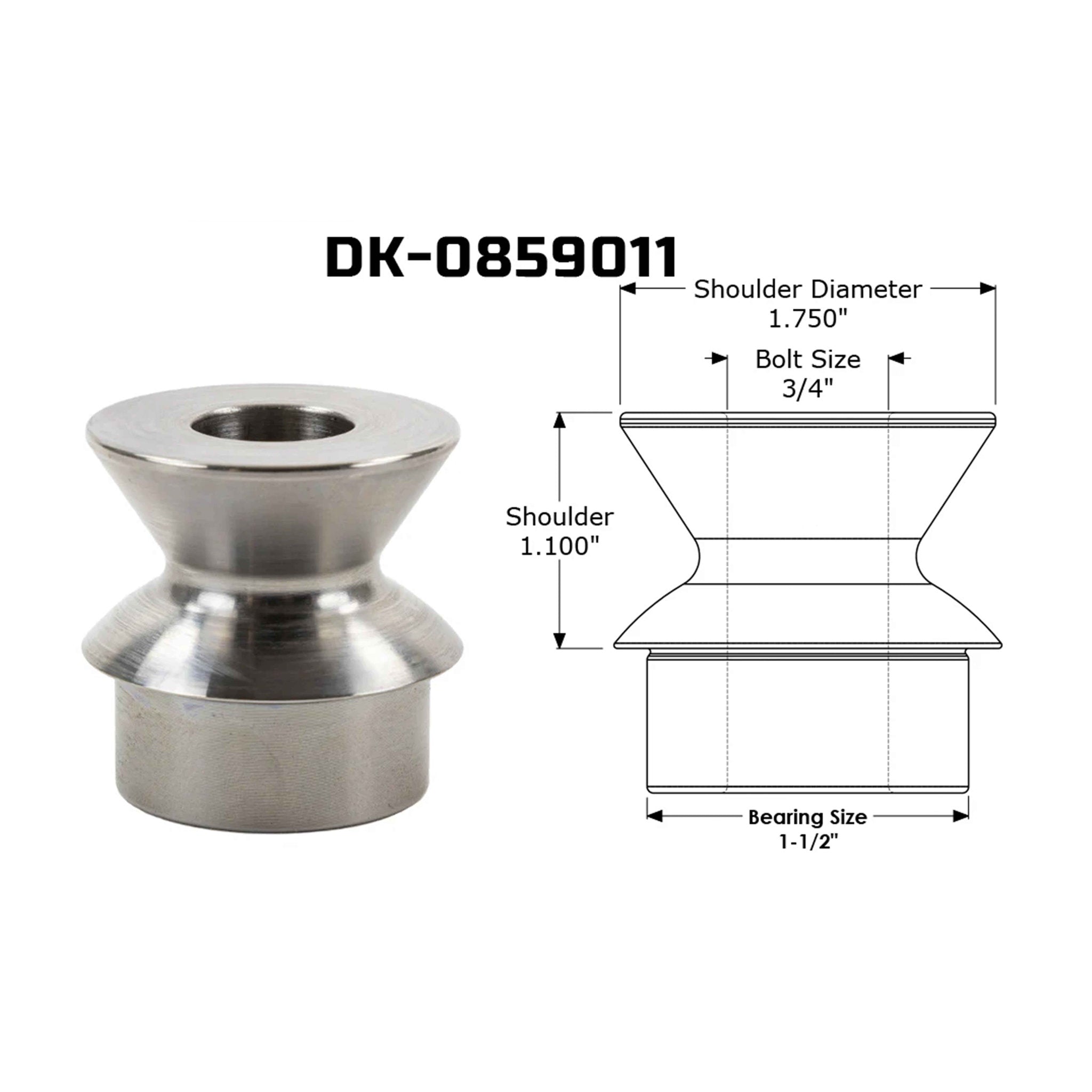

| 1.5" OD X 3/4" ID | 1 1/2" | 1.1" | 3/4" | 3.575" |
The Dirt King high misalignment spacers are precision machined from heat treated 17-4 stainless steel and designed to achieve maximum angles without sacrificing strength.
Sold individually.
