Can-Am X3 OnX6+ 40" Roof Light Bar Kit | 2017–2024
Couldn't load pickup availability

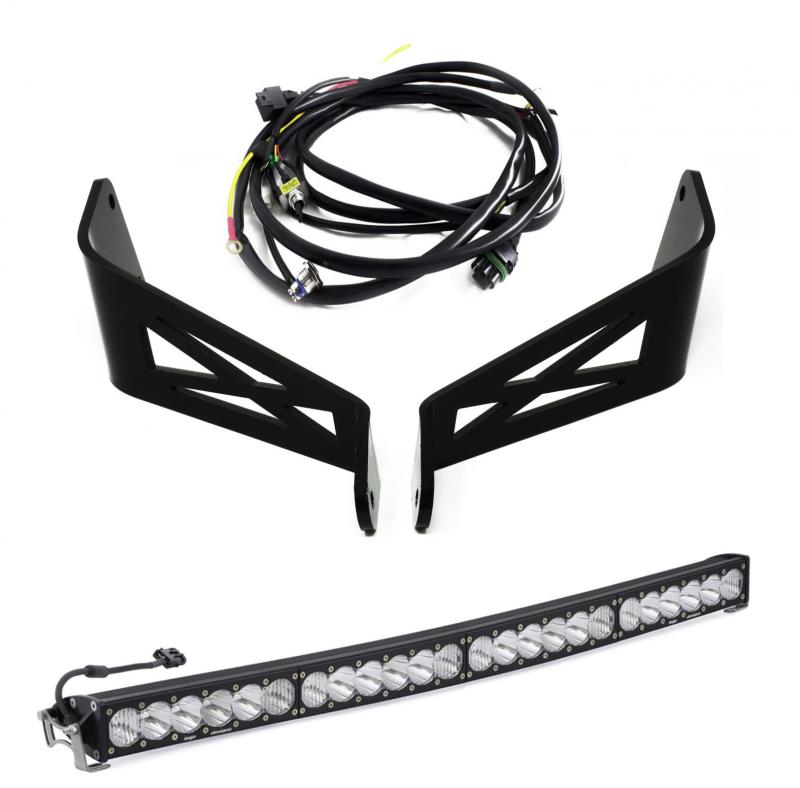

Experience industry-leading performance and nighttime clarity with the Baja Designs OnX6+ 40" Roof Mount Light Bar Kit, engineered specifically for the 2017–2024 Can-Am Maverick X3, including both standard and rock crawler variants. Designed for off-road enthusiasts who demand extreme visibility, this kit delivers unmatched illumination and rugged reliability.
The OnX6+ 40” LED light bar features dual-mode functionality with both high and low beam outputs. Delivering up to 38,900 lumens on high and 32,440 lumens on low, this bar utilizes 24 forward-projecting LEDs in a Driving/Combo beam pattern, offering both long-range visibility and wide-area coverage.
Constructed with aircraft-grade aluminum, a billet-machined aluminum bezel, and hardcoated polycarbonate lenses, this light bar is built to handle the toughest trails. The included stainless steel roof mount brackets ensure secure, high-speed stability and a clean, integrated look.
Note: Wiring harness not included. A Hi-Low dongle or compatible harness is required for installation.
Key Features:
- Fits Can-Am Maverick X3 (2017–2024)
- Includes OnX6+ 40" Dual-Mode LED Light Bar
- Driving/Combo beam pattern: long-distance + wide spread
-
Output:
-
38,900 lumens (High Beam)
-
32,440 lumens (Low Beam)
-
- Wattage: 346W (High) / 290W (Low)
- Amperage: 26.8A (High) / 22.4A (Low)
- Rated LED lifespan: 49,930 hours
- Aircraft-grade aluminum housing with Mil-Spec hard anodize
- Billet machined aluminum bezel
- Hardcoated polycarbonate lens
- Built-in overvoltage protection
- Includes stainless steel roof mounting brackets
- Lighting Modes: Hi/Low beam
What’s Included:
- (1) 40" OnX6+ LED Light Bar
- (1) Vehicle-Specific Roof Mount Bracket Kit
- Wiring harness sold separately (Hi-Low dongle required)
Fitment:
-
Can-Am Maverick X3 (2017–2024)
- Compatible with both standard and rock crawler models
Features
Features
- Twelve built-in holes perfect for tie straps for use in sand, snow, or dirt
- Grooved bottom to slide easily though different terrain types
- Curved ends to glide easily through terrain
- Universal adapting bowl to fit most UTVs
- Ultimately, we want the product to be the strongest and most durable in conditions such as sand, dirt or snow. Therefore, we have spent a lot of time researching and developing the Safe Sled. We used HDPE plastic, which is found to be the most durable material for off-road purposes, to stand against the pressure and load.
Safe Sled to pull your UTV out of any situation
Specification
Specification
- 36''L*15''W*7''H per unit
- 5mm wall thickness , unit weight is approximately 7.5lbs (3.5-4kg)
