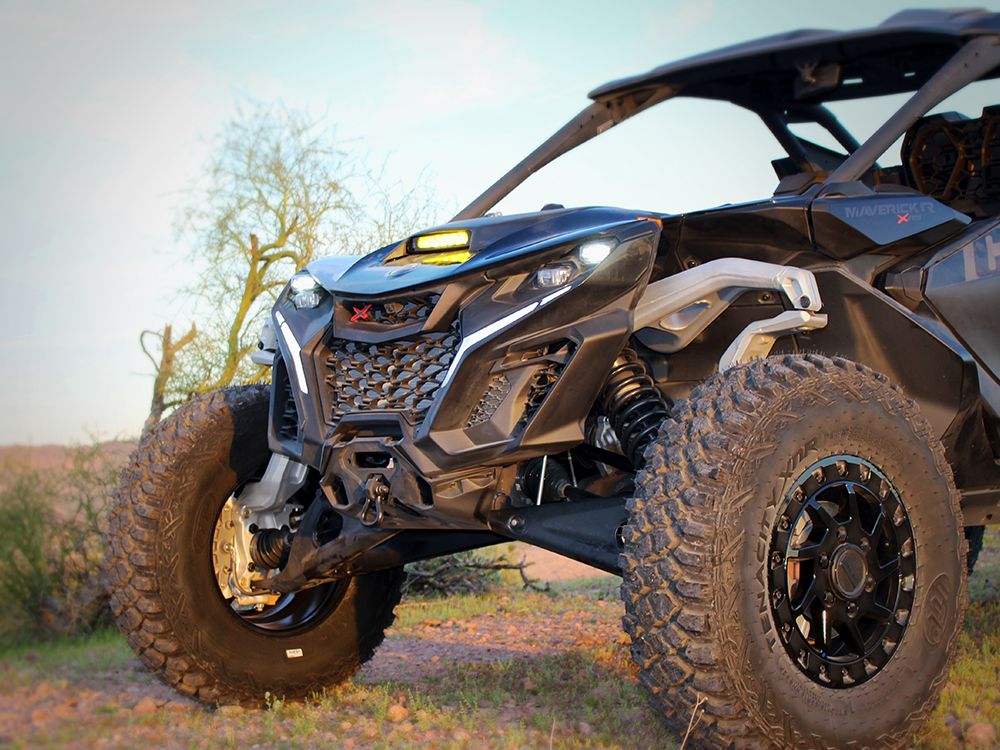

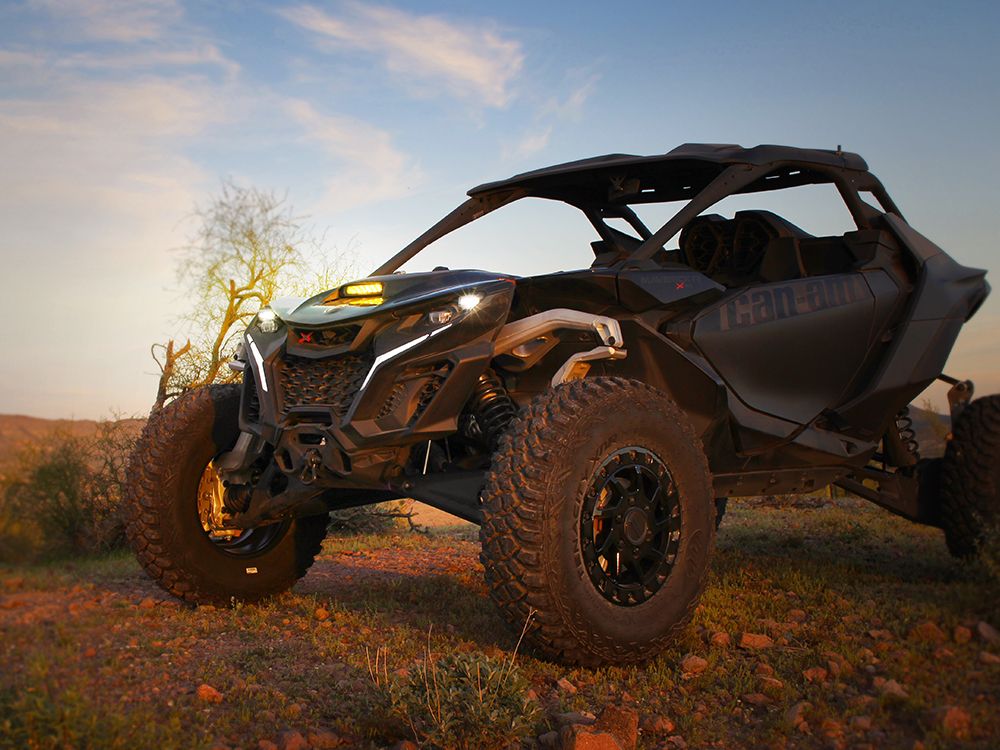

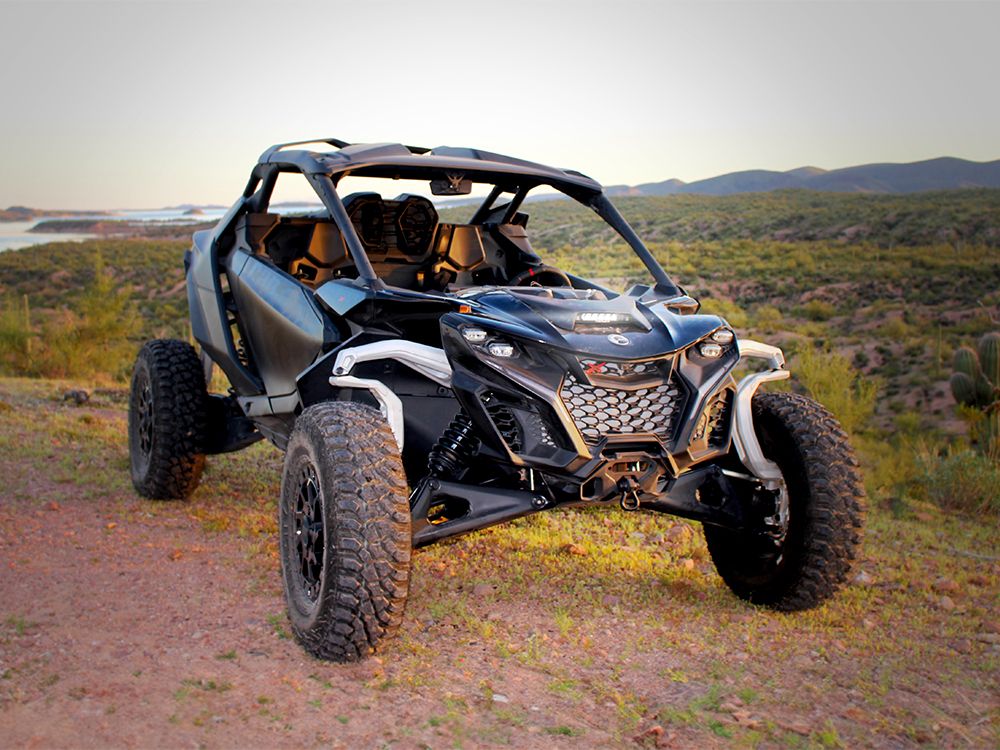

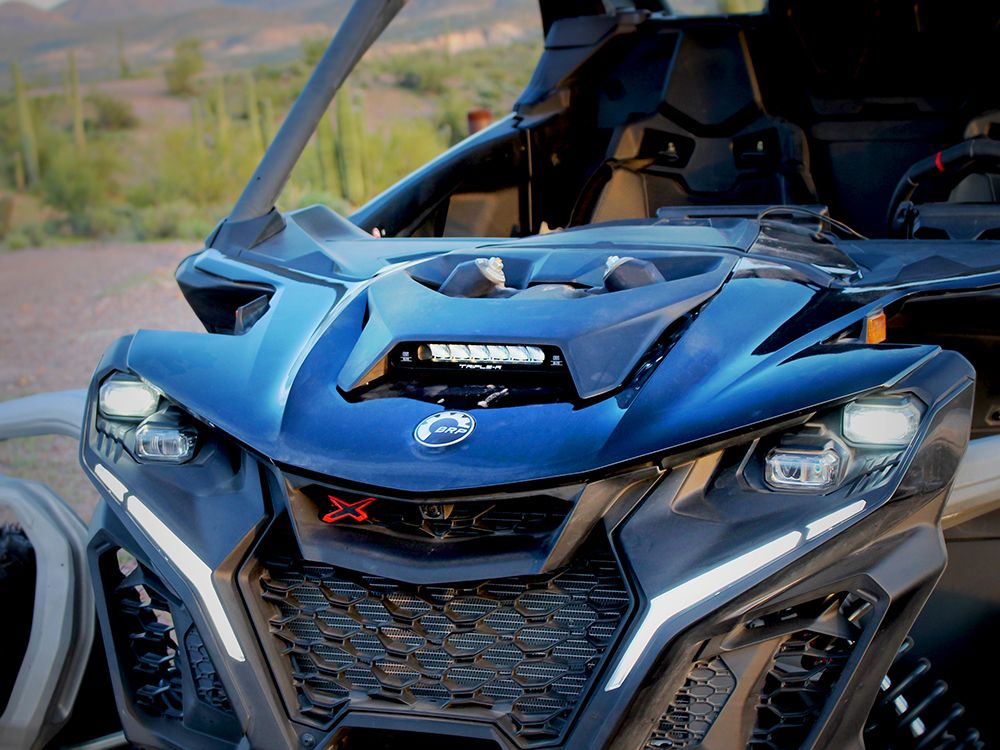

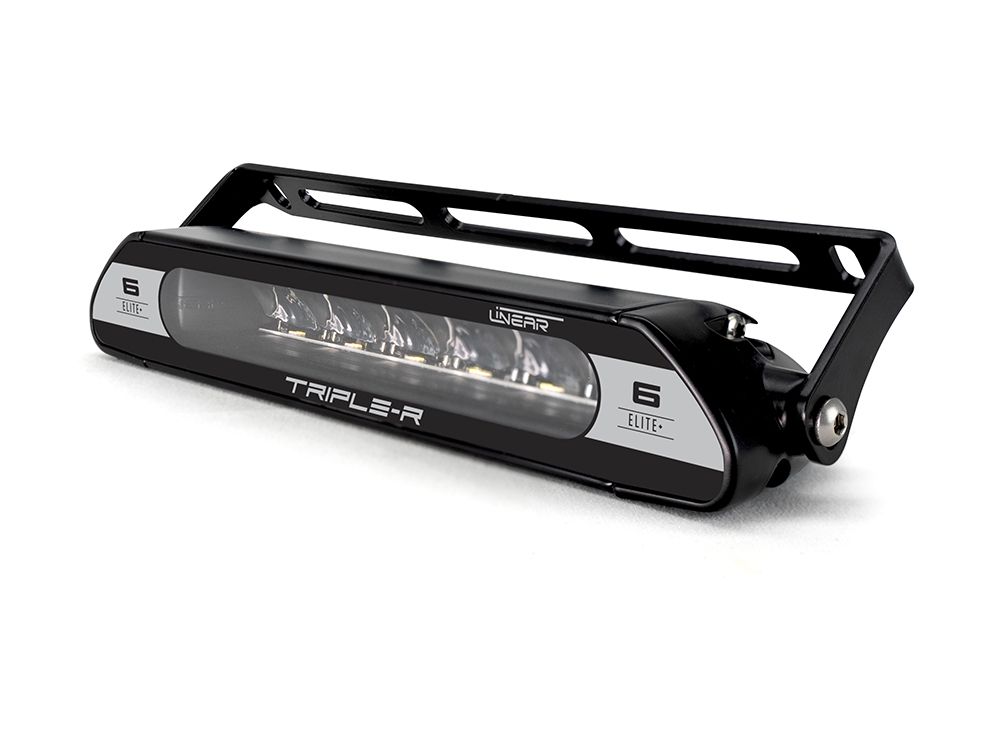

CAN-AM Maverick R - Hood Mount Light Bar

$300.00 USD
$300.00 USD
Sale Sold out
Shipping calculated at checkout.
Light Bar
Wiring Kit

FEATURES & BENEFITS

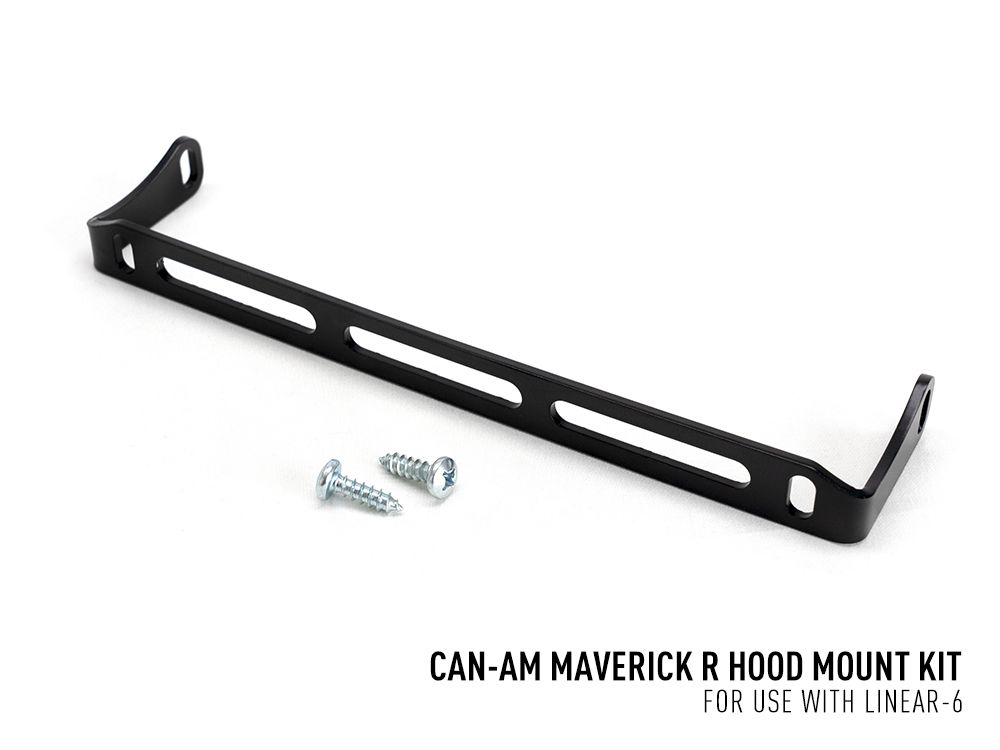

  • Easy mounting solution
  • Avaliable with three different light bars

DESCRIPTION

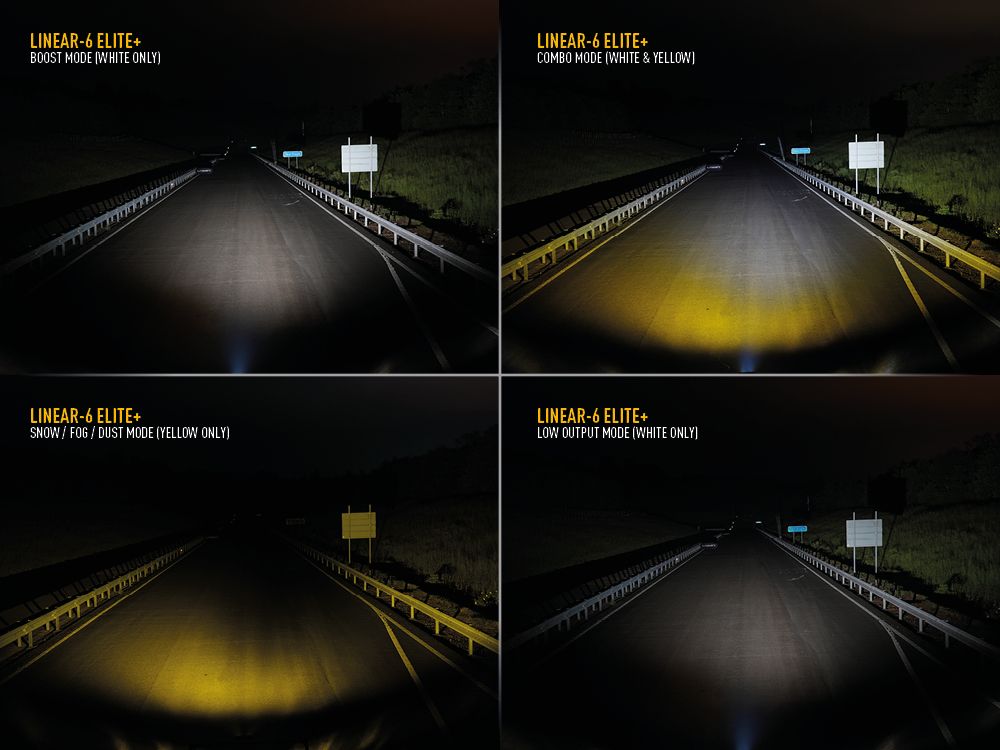

Representing an evolution in the highest performance LED lighting solutions, the Elite and Elite+ range comprises products with enhanced performance, light distribution, and functionality.  Superior white light high beam function for awe-inspiring night-time visibility at a slightly softer, more relaxing color temperature with that light angled slightly down and to the sides of the road or track making this function ideal in snow, fog, or dust conditions.

SPECIFICATIONS



LINEAR-6
YELLOW

LINEAR-6
ELITE

LINEAR-6
ELITE+
(LOW OUTPUT / BOOST)

Voltage Range (DC) 10-32V 10-32V 10-32V
LED Life 50,000 hrs 50,000 hrs 50,000 hrs
Weight 1.1 lbs 1.1 lbs 1.1 lbs

HIGH BEAM FUNCTION
Total Luminous Flux 4,320 Lm 4050 Lm 5100 / 2500 Lm
Total Driver 'FOV' Flux † 2,839 Lm 2884 Lm 3645 / 1822 Lm
Colour Temperature PC Yellow 5000K 5000K
Power Consumption 42 Watts 42 Watts 48 W / 24 W
Current Draw (14.4V) 2.9 Amps 2.9 Amps 3.6 A / 1.8 A

CERTIFICATION
IP Rating # IP68 IP68 IP68
EMC Certification ECE R10 ECE R10 ECE R10
Salt Spray Test ISO 9227 ISO 9227 ISO 9227
Dump Load Protection ISO 7637-2 ISO 7637-2 ISO 7637-2

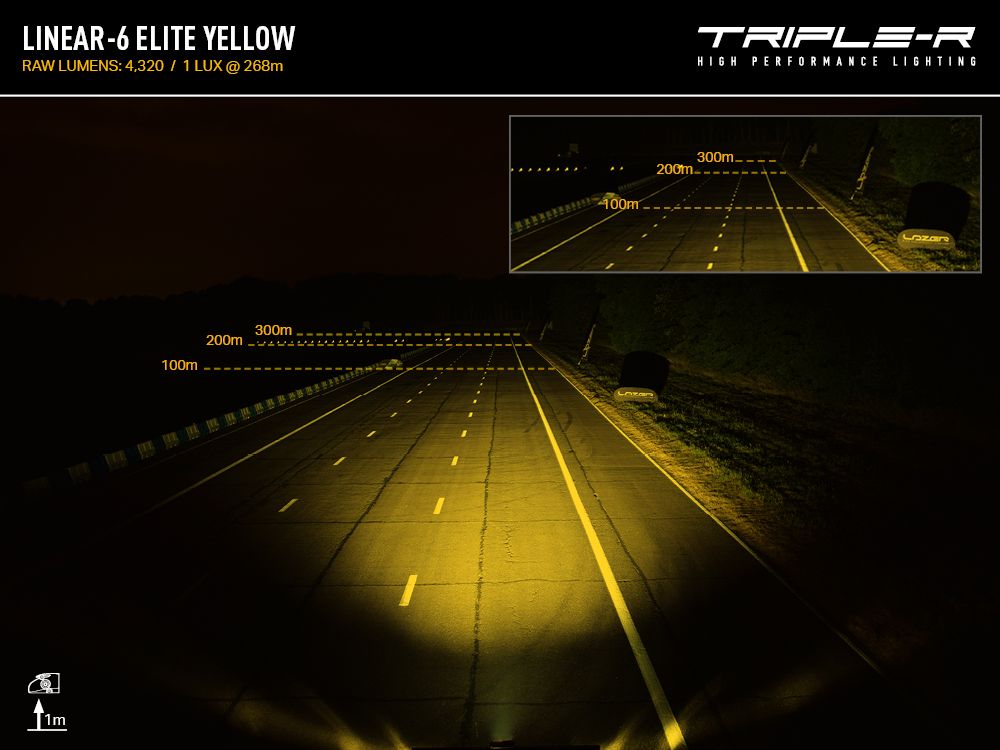

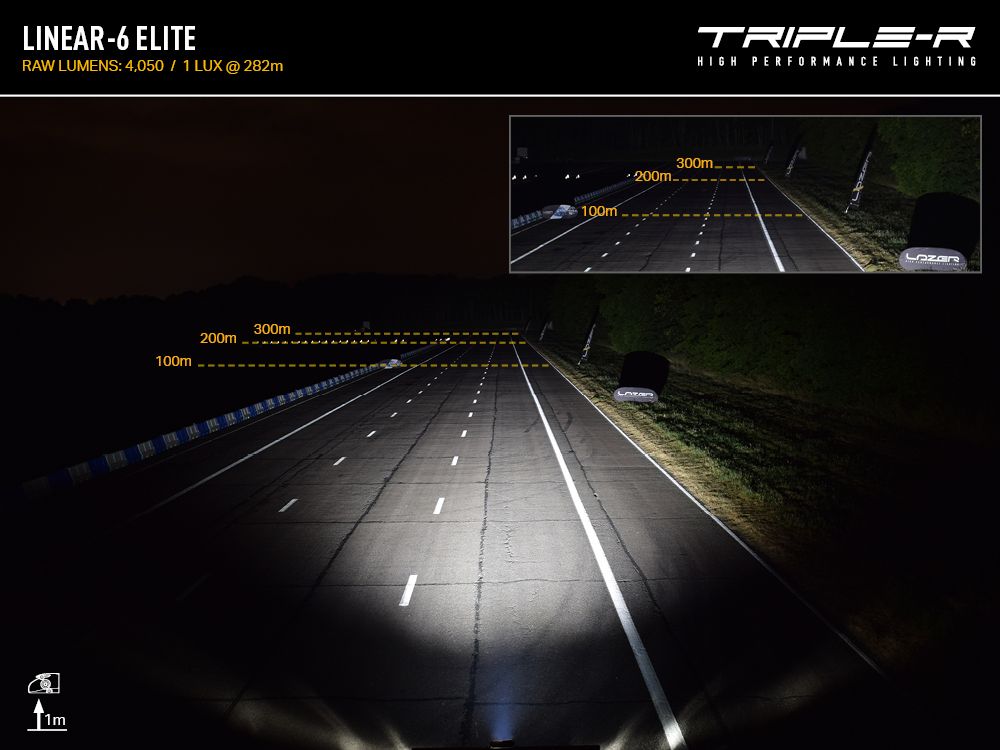

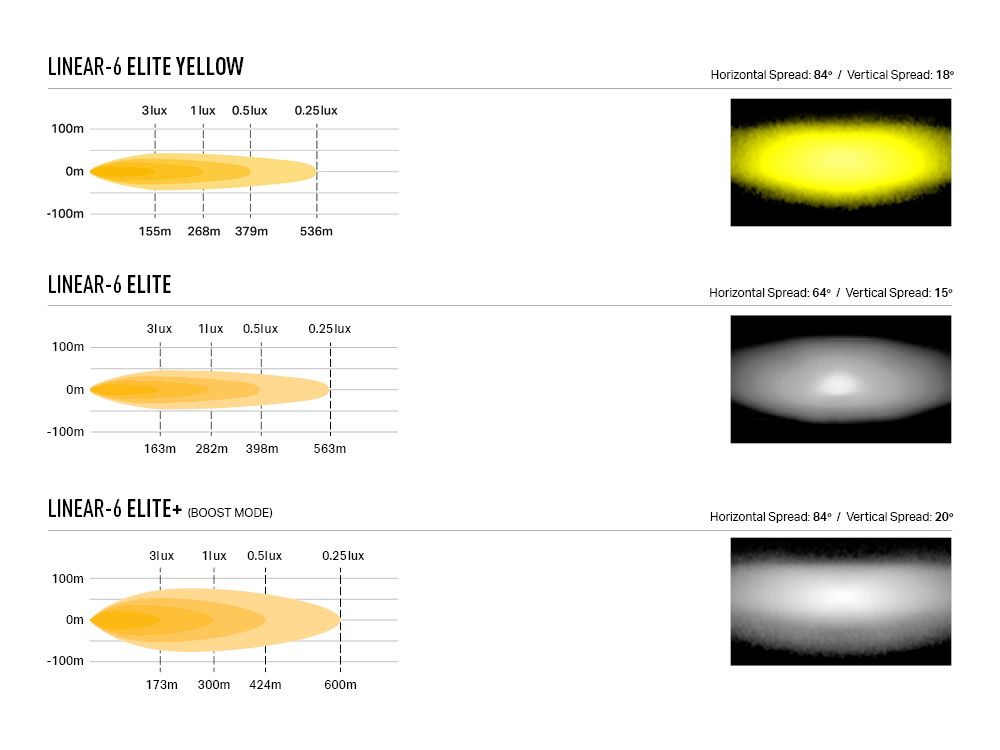

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 84° / 18° 64° / 15° 84° / 18°
0.25 lx Line 536m 563 m 600m / 424m
0.5 lx Line 379m 398 m 424m /300m
1 lx Line 268m 282 m 300m / 212m
3 lx Line 155m 163 m 173m / 122m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

Features

  • Twelve built-in holes perfect for tie straps for use in sand, snow, or dirt
  • Grooved bottom to slide easily though different terrain types
  • Curved ends to glide easily through terrain
  • Universal adapting bowl to fit most UTVs
  • Ultimately, we want the product to be the strongest and most durable in conditions such as sand, dirt or snow. Therefore, we have spent a lot of time researching and developing the Safe Sled. We used HDPE plastic, which is found to be the most durable material for off-road purposes, to stand against the pressure and load.

Safe Sled to pull your UTV out of any situation

Specification

  • 36''L*15''W*7''H per unit
  • 5mm wall thickness , unit weight is approximately 7.5lbs (3.5-4kg)
